Framed Cleanroom Walls

A durable cleanroom wall system with broad design flexibility, FabLine framed systems provide the optimum combination of high durability, design versatility, and simple installation.

Ideal for environments up to a sub-Class 1 (M1) classification, FabLine framed wall systems are available in three panel thicknesses:

Fabline cleanroom

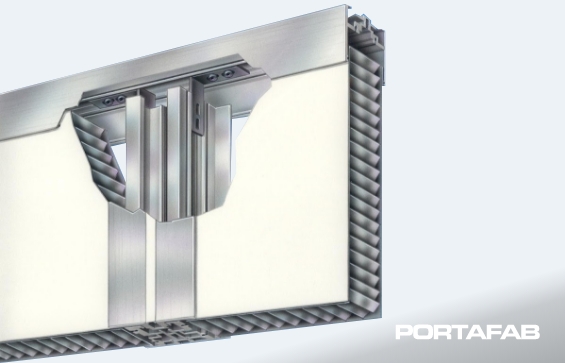

Framed 2000

This 2.00" (50mm) thick wall system for cleanrooms provides a flush surface on both sides of the wall panel.



modular cleanrooms

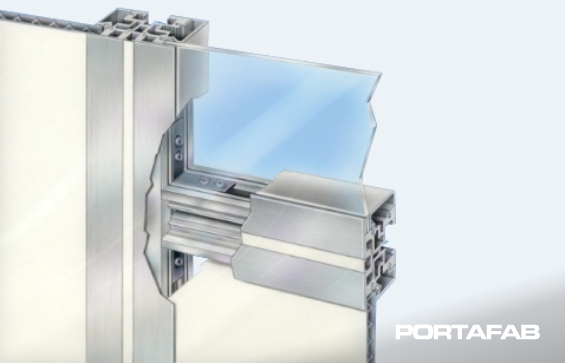

Framed 500

These 0.50" thick (12mm) wall panels provide a flush wall surface on one side ideal for mechanical and plenum chase applications.



modular cleanrooms

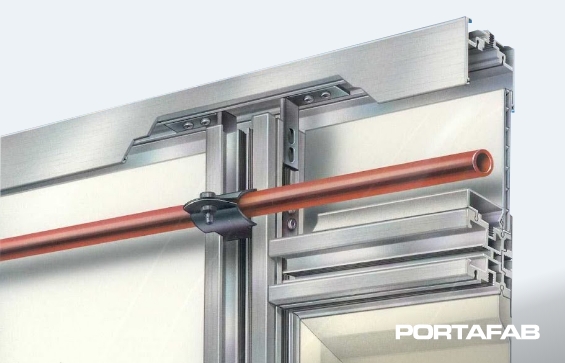

Framed 250

Utilizes a 0.25" thick (6mm) wall panel. The cost-effective solution for bay/chase cleanroom designs requiring small and large gasketed bulkheads.



Bulkheading Capabilities

FabLine Framed is the ideal wall system for constructing cleanrooms requiring a flush surface on one or both sides of the wall. It is designed for extensive bulkheading around tools and equipment. Vertical and horizontal members are easily connected to each other to simplify bulkheading that allows gasketed, air tight seals around equipment and tooling for minimum loss of room pressurization.

Adaptable to Constant Change

The non-progressive construction of the FabLine Framed system allows for easy removal of wall panels from either the front or back without disturbing adjacent panels, ceilings or the framing post.
