PortaFab offers the widest variety of cleanroom wall panels in the industry in order to accommodate a variety of modular cleanroom applications. We will be happy to provide a customized quote based on your specific requirements and application.

wiring icon

MICROELECTRONICS APPLICATIONS

Aluminum honeycomb panels tend to be the most popular wall panels chosen for microelectronics cleanrooms because of they are non-outgassing, non-particle shedding, and anti-static as well as lightweight and non-combustible.

prescription icon

PHARMACEUTICAL APPLICATIONS

Pharmaceutical applications require panels that can be washed continuously without breaking down while architectural finishes withstand repeated cleaning and sanitization with various chemicals to resist microbial and fungal growth.

security icon

CUSTOM APPLICATIONS

Alternate surfaces and cores, however, are available to meet the requirements of any type of cleanroom application. Surfaces offered include melamine, vinyl, painted steel, stainless steel, Fiberglas™ reinforced plastic (FRP), polyvinyl chloride (PVC), high pressure laminates, and porcelainized steel.


wall panels icon

Panel Options

Panel cores are available in expanded polystyrene, paper honeycomb, aluminum honeycomb, gypsum, isocyanurate, and mineral wool.

Standard Fire and Sound Panels

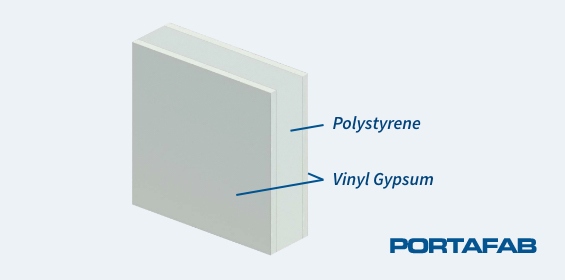

Standard Fire & Sound Panels

As the best selling wall panel in our inplant office line, the Standard Fire & Sound has proven to be a successful and cost effective option for many cleanroom applications. The durable vinyl surface is easy to clean and has a very attractive appearance. It features a polystyrene core that provides excellent thermal insulation and sound deadening properties along with a layer of gypsum that helps it achieve a class A noncombustible rating.

Panel Thickness STC R-Value
2” 32 3
3” 31 11
4 5/8 31 16
Fire and Sound with Steel Exterior

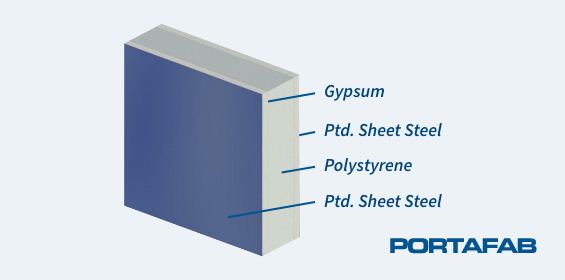

Steel Fire & Sound (Steel on both sides)

Fire & Sound panels with steel surfaces are ideal for areas subject to a significant amount of traffic or exposure to hand trucks, forklifts, or other material handling equipment. These insulated metal wall panels come with one or two 24 gauge steel surfaces and have excellent sound deadening and thermal insulating properties.

The painted steel panels are extremely durable and can be painted gray or white. Like all Fire & Sound wall panels, they are non-combustible.

Panel Thickness STC R-Value
2” 32 3
3” 31 11
4 5/8 31 16
Fire and Sound with Steel Exterior (one side)

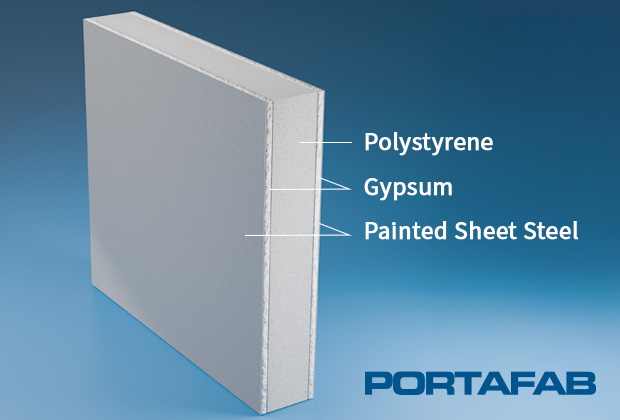

Fire & Sound with Steel Exterior (Steel on one side)

Fire & Sound panels with steel surfaces are ideal for areas subject to a significant amount of traffic or exposure to hand trucks, forklifts, or other material handling equipment. These insulated metal wall panels come with one or two 24 gauge steel surfaces and have excellent sound deadening and thermal insulating properties.

The painted steel panels are extremely durable and can be painted gray or white. Like all Fire & Sound wall panels, they are non-combustible.

Panel Thickness STC R-Value
2” 32 3
3” 31 11
4 5/8 31 16

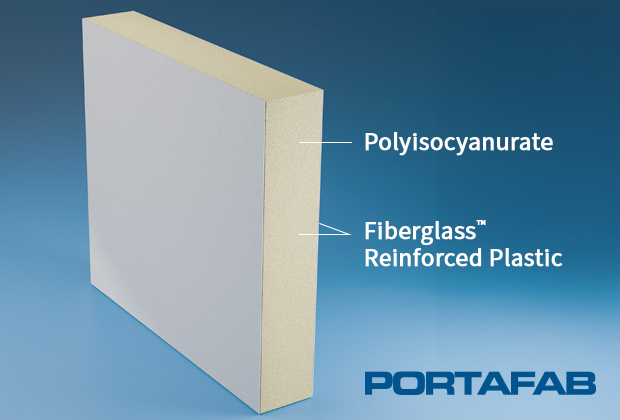

Fiberglass Reinforced Plastic Wall Panels

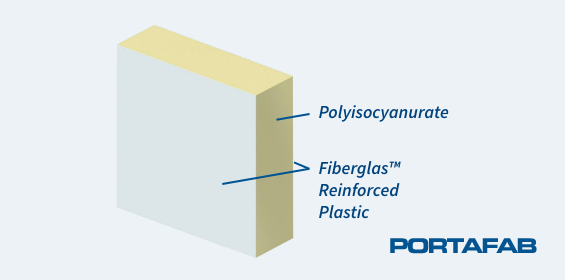

Fiberglass Reinforced Plastic Wall Panels

Fiberglass Reinforced Plastic (FRP) Wall Panels are ideal for any cleanroom that will be exposed to a great deal of moisture or require extensive cleaning with harsh chemicals. Typical applications include laboratories, pharmaceutical cleanrooms, and environments subject to FDA regulations. FRP panels can be outfitted with moisture resistant gypsum board if required.

Panel Thickness STC R-Value
2” 24 7
3” 20 13
4 5/8 20 20
Aluminum Honeycomb Panels

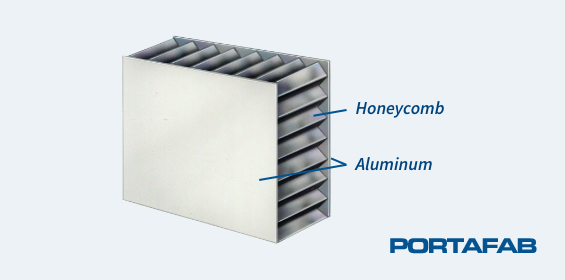

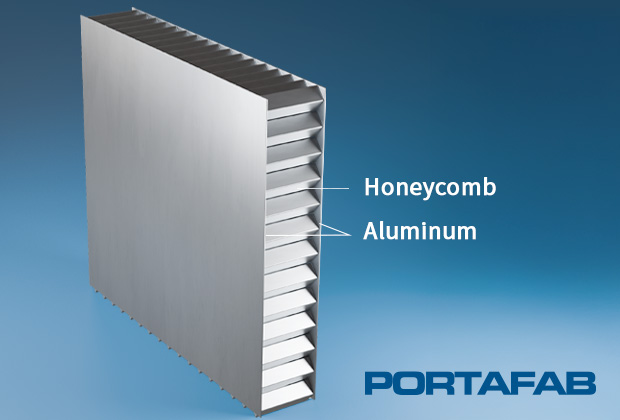

Aluminum Honeycomb Panels

These popular panels withstand repeated cleaning and sanitizing with various chemicals to resists microbial and fungal growth. They are non-outgassing, non-particle shedding and anti-static as well as lightweight and non-combustible.

Panel Thickness STC R-Value
2” 20 3
3” 20 3
4 5/8 20 3
Polyisocyanurate

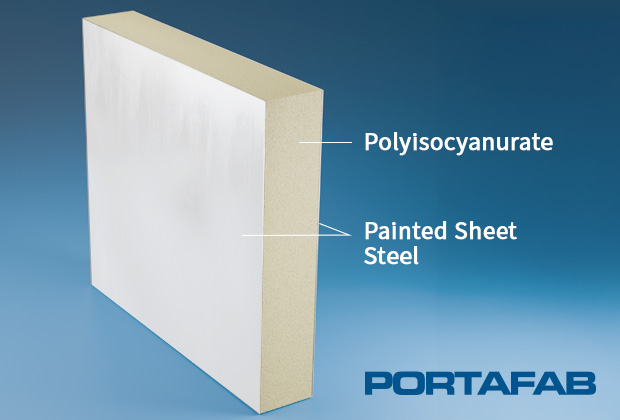

Polyisocyanurate

Totally non-combustible wall panel with excellent thermal insulation.

Panel Thickness STC R-Value
2” 24 10
3” 20 18
4 5/8 20 27

specialty wall panels

Specialty Wall Panels

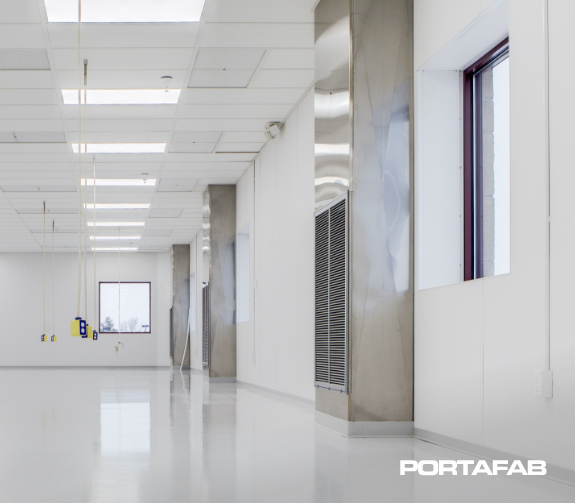

Specialty Cleanroom Wall Panels


Alternate surfaces and cores are available to meet the requirements of any type of cleanroom application. Surfaces offered include melamine, vinyl, painted steel, stainless steel, Fiberglas™ reinforced plastic (FRP), polyvinyl chloride (PVC), high pressure laminates, and porcelainized steel. Panel cores are available in expanded polystyrene, paper honeycomb, aluminum honeycomb, gypsum, isocyanurate, and mineral wool.

Special hollow walls provide air return channels for cleanroom applications.
