Year-Round Comfort

A variety of Air Conditioning and HVAC options can be added to regulate temperatures within the booth.

Insulated Walls

Insulated wall panels can provide additional protection from extreme temperatures.

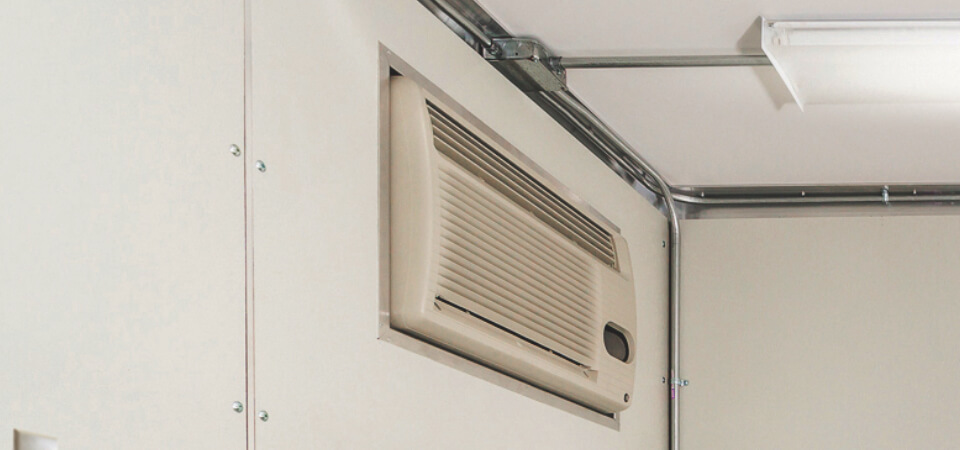

HVAC & AC Units

PortaFab booths can be outfitted with a number of standard air conditioner and HVAC units. Wall mount AC units include: 8000 BTU–115V, 12,000 BTU–115V and 15,000 BTU–230V. AC and heater combo include 8,000, 11,000 and 15,000.

Exhaust Fans

Integrated exhaust fans provide a cost-effective method of circulating airflow and improving worker comfort.

Baseboard Heaters

Electric baseboard heaters can be surface mounted onto walls and integrated with the building’s electrical system.

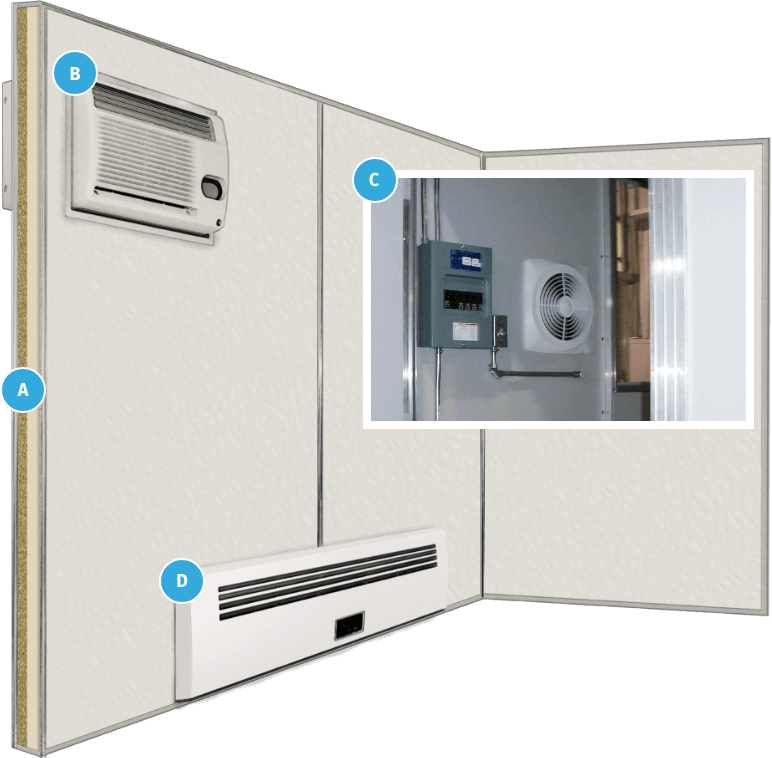

example HVAC options for booths

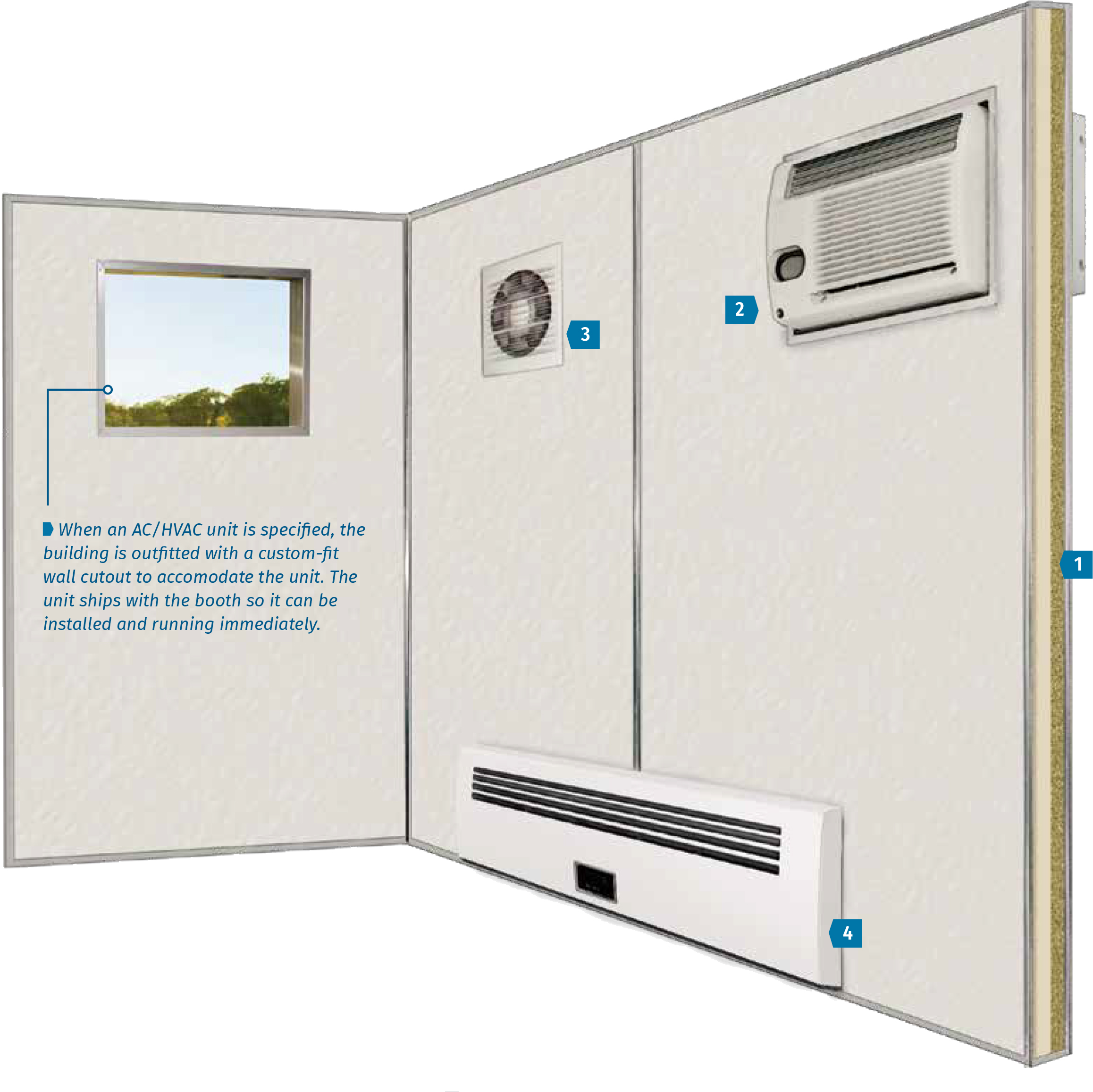

decorative booth hvac diagram

Additional Options

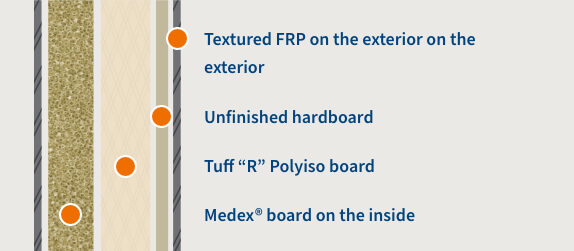

cross-section diagram of insulated booth wall

Insulated Wall Panels

Insulated wall panels are approximately 1-3/4” thick and feature .030” FRP panels laminated over a core of 1/8” hardboard, 1” Tuff “R” Polyiso board and 1/2” Medex™ board.

  • Insulated panels feature R-10 insulation and can be used for both walls and ceilings.

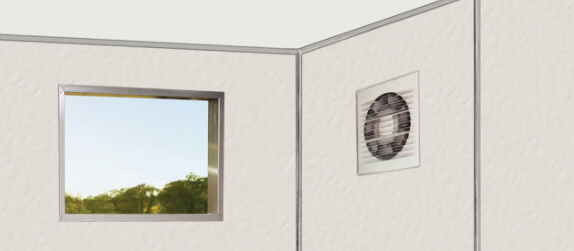

example of wall cutouts for ventilation or placement of existing HVAC system

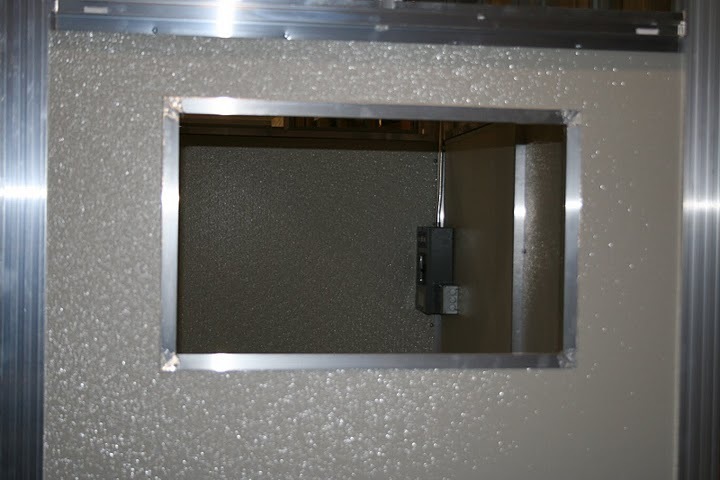

Wall Cutouts

If an HVAC system is not desired, or an existing unit will be installed in the booth, an HVAC system cutout can be installed in the booth prior to shipping so a system can be installed on site.

  • All booths shipped with HVAC or AC units come with the HVAC cutout configured to the specific unit ordered.
