Fire & Sound wall panels with steel surfaces are ideal for areas subjected to a significant amount of traffic or exposure to hand trucks, forklifts, or other material handling equipment. These insulated metal wall panels come with one or two 24 gauge steel surfaces and have excellent sound deadening and thermal insulating properties.



Features

  • Class-A non-combustible
  • Available with one or two steel-faced sides
  • Durable 24-gauge steel face resists damage

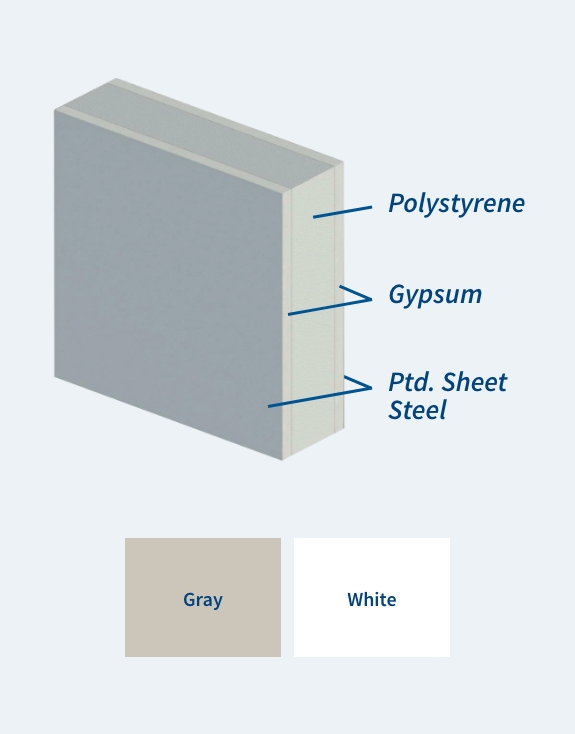

Standard Construction

  • Face: 24-gauge steel
  • Substrate: ½” gypsum
  • Core: Polystyrene
  • Substrate: ½” gypsum
  • Back: 24-gauge steel or vinyl-faced gypsum

Colors

The painted steel panels come standard in champagne, gray or white, but our in-house paint operation can provide custom colors (minimums and additional charges may apply).

Specifications

Panel Thickness STC R-Value
3" 31 11
4⅝" 31 16
modular wall systems, warehouse walls, warehouse wall panels, inplant wall panels, inplant wall systems, warehouse offices, inplany offices, modular walls


modular wall systems, warehouse walls, warehouse wall panels, inplant wall panels, inplant wall systems, warehouse offices, inplany offices, modular walls

Common Applications

Steel Fire & Sound wall panels are typically specified for applications in rugged, industrial environments.

modular wall systems, warehouse walls, warehouse wall panels, inplant wall panels, inplant wall systems, warehouse offices, inplany offices, modular walls

High Traffic Warehouses

modular wall systems, warehouse walls, warehouse wall panels, inplant wall panels, inplant wall systems, warehouse offices, inplany offices, modular walls

Industrial Buildings

modular wall systems, warehouse walls, warehouse wall panels, inplant wall panels, inplant wall systems, warehouse offices, inplany offices, modular walls

Equipment Enclosures
