Save costs, labor, and materials with modular construction. PortaFab's 8' x 8' standard Quick-Ship unit comes as 4-, 3-, or 2-wall building created from our OmniFlex steel stud framing system.

Download Sales Sheet

warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

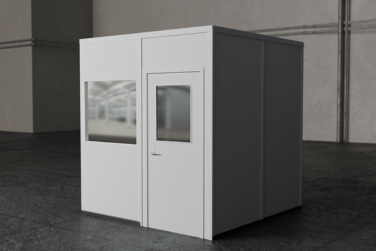

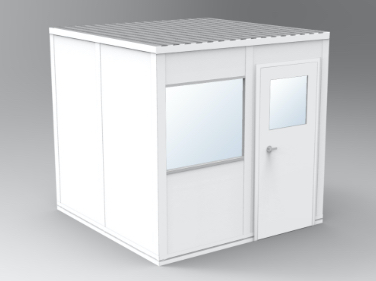

4-Wall 8' x 8' Building

warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

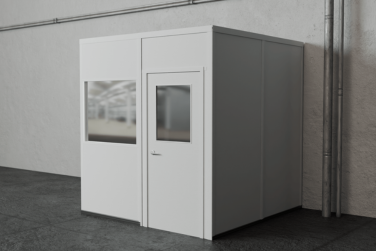

3-Wall 8' x 8' Building

warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

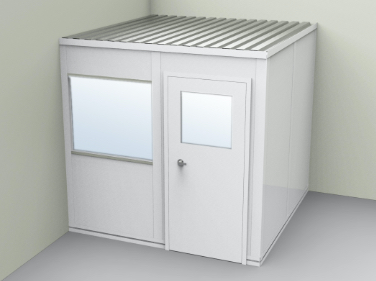

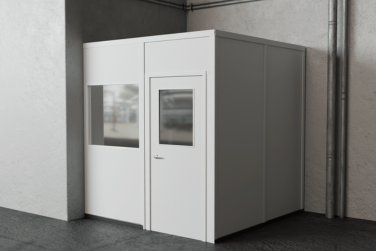

2-Wall 8' x 8' Building



Modular Office Features

Our complete prefab kits include everything needed for a basic modular inplant office. All models include the following:

warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Interchangeable Wall Panels (Fire & Sound Panels)

warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Acoustical Drop
Ceiling

warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Steel Roof
Deck

warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Framing: Wiring Posts, Corner Posts, Top and Bottom Channels

warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Connecting
Hardware

warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Pre-Hung Steel Door
With or Without Window

warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Wiring Posts: OmniFlex Steel (Champagne, Gray, White)

warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Non-Progressive System

warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Galvanized
Floor Track

warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Vinyl-Base Interior and Exterior

  Product Specifications
Width (Feet) 8' 4-1/2" Door Style Swing
Depth (Feet) 8' 4-1/2" Frame Construction Painted Steel
Height (Feet) 8' or 9' Light Fixtures 1 (based on 4-wall building configuration)
Color / Finish Champagne, Gray, White Outlets 2 (based on 4-wall building configuration)
Approval / Regulations Fire & Sound Panel: R-11, STC-31 (Class A per ASTM-E84) Limited Warranty 1 Year
Assembly Unassembled Type 4-Wall, 3-Wall or 2-Wall
Clearance Height Interior 7'6" with 8' panels
8'6" with 9' panels
Wall Construction Fire and sound (F&S) panels with 1/2" vinyl gypsum on polystyrene core
Door Size 3' x 7' Wall Thickness (Inches) 3"

warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Options for Quick-Ship Units

warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Doors

Steel Door Assembly

  • 3070 - 20 Gauge Steel Door (Flush)
  • 6070 - 20 Gauge Steel Double Door (Flush)

Glass and Threshold

  • 1/4” Clear Tempered Safety Glass

Threshold

  • 3” Aluminum Threshold
warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Door Hardware

Hardware

  • Lever Lockset (standard duty)
  • 16” x 12” Door Louver
  • Door Closer
  • Kickplates
warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Window Assemblies

Fixed Window

  • 4’ or 2’ nominal width x 3’ nominal height glazed with 1/4 clear tempered safety glass

Sliding Window

  • 3’ x 3’ nominal dimensions, installed in wall panel glazed with 1/8” clear
    tempered safety glass
warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Roof and Ceiling Systems

Acoustical Ceiling

  • 2’ x 4’ x 5/8” mineral fiberboard with white steel grid system

Ceiling Insulation

  • 6” Fiberglass (R-19) (144 SF per roll)

Up to 12’ Length Roof Deck

  • 16’ or 20’ long dust cover support beam
  • 12’ Dust cover support angle (must be
    used along all existing walls)
warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Climate Control

HVAC Units

  • 11,600 btu cool/11,300 btu heat (230V)

Air Conditioning Units

  • 7,900 btu (115V)

Baseboard Heaters

  • 1,500 watt - 120V

Framed Cutouts

  • Installed or material only (size not to
    exceed 12 l.f.)
warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Electrical Components

Light Fixture

  • 2’ x 4’ fluorescent (4-bulb) fixture, T8 ballast (bulbs not included)

Outlet or Switch

  • Outlet without Wiring (15V) OR switch without wiring (15V)

Circuit Breaker Boxes

  • 4-Space, 6-Space, or 10-Space

Exhaust Fan

  • 270 cfm ceiling mounted exhaust fan with fan, duct kit, & switch (louver in
    door recommended for max air flow)

warehouse office, implant office, modular warehouse office, modular walls, warehouse walls, inplant walls, modular office building, modular office buildings

Modular Electric Packages

Modular Wiring

For even greater convenience, offices can be outfitted with a pre-engineered modular wiring system.

  • This system significantly reduces time and costs associated with new in-plant office installations by providing all the necessary electrical hardware in a convenient and pre-engineered “snap together” wiring system.
