Save costs, labor, and materials with modular construction. PortaFab's 12' x 16' standard Quick-Ship modular units come as 4-, 3-, or 2-wall buildings created from our OmniFlex steel stud framing system.

Download Sales Sheet

4 Wall

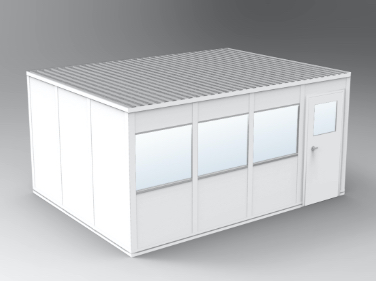

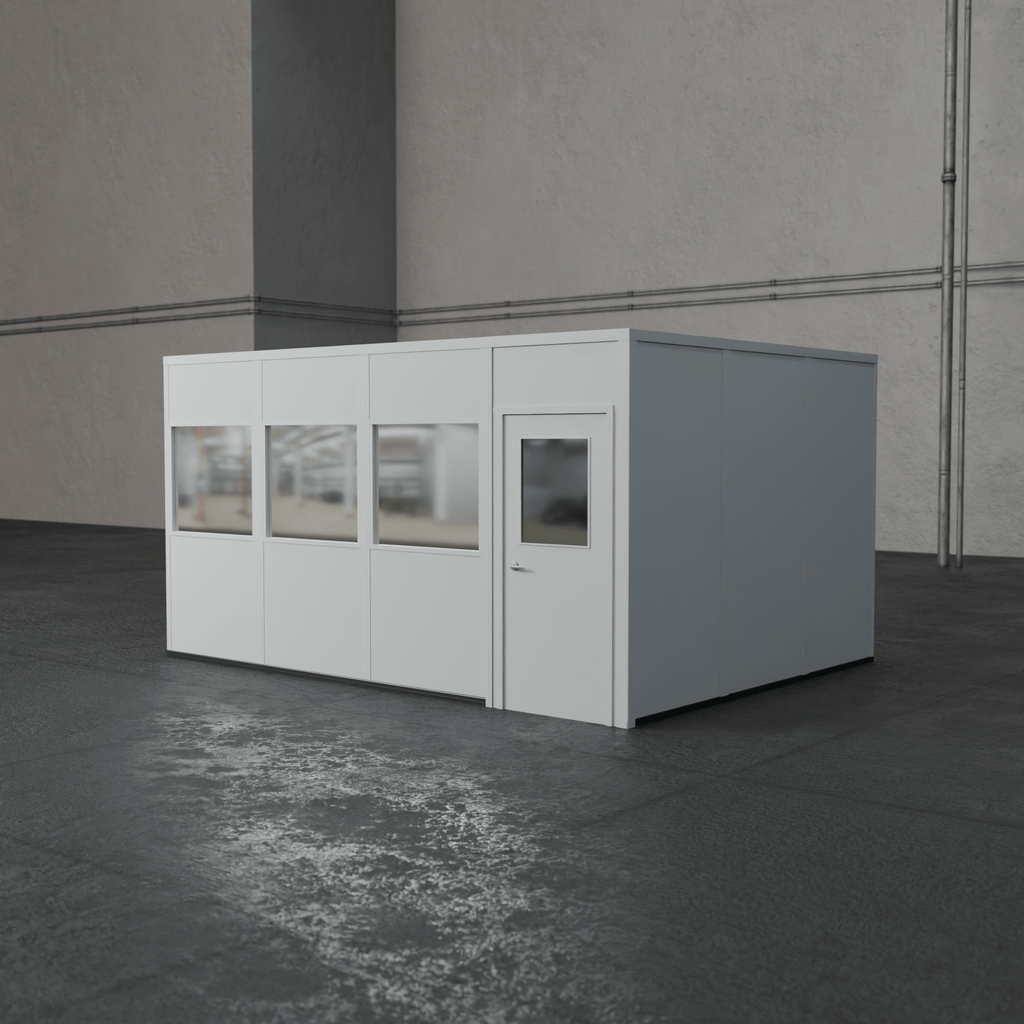

4-Wall 12' x 16' Building

3 Wall

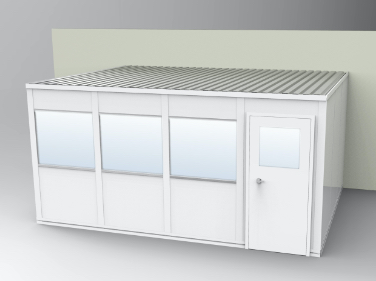

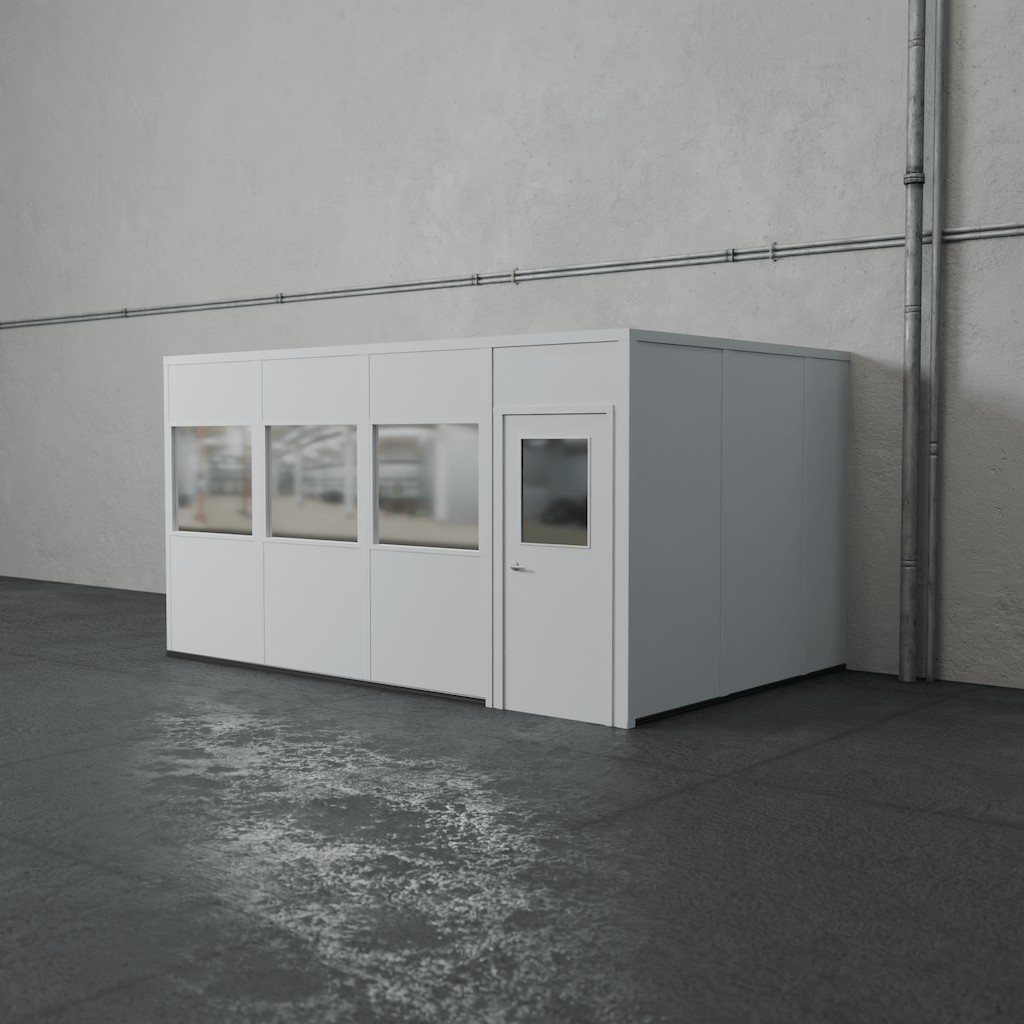

3-Wall 12' x 16' Building

2 Wall

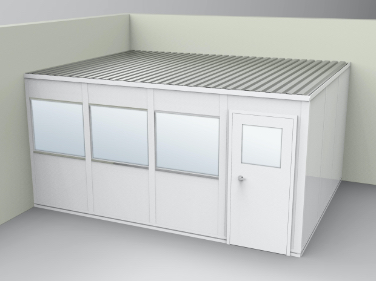

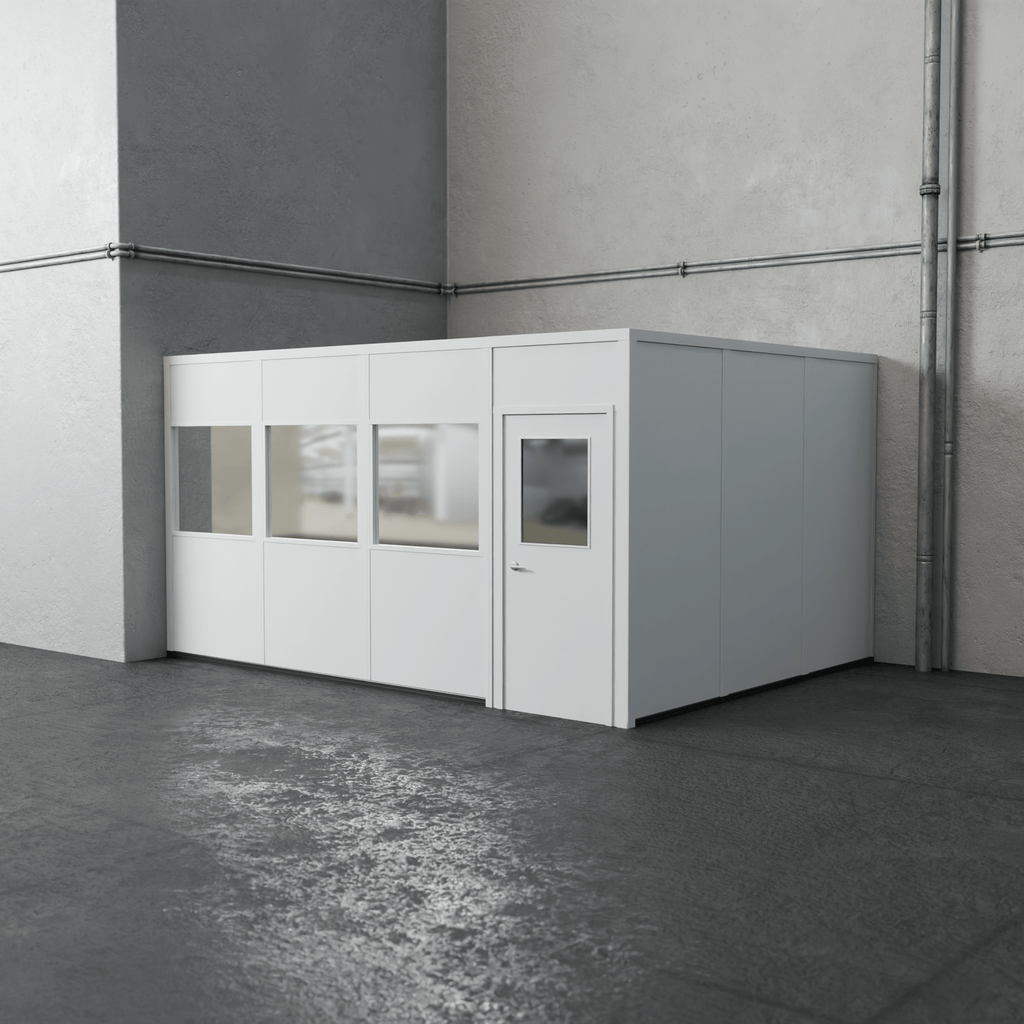

2-Wall 12' x 16' Building



Modular Office Features

Our complete prefab kits include everything needed for a basic modular inplant office. All models include the following:

wall panels

Interchangeable Wall Panels (Fire & Sound Panels)

acoustical drop ceiling

Acoustical Drop
Ceiling

steel roof deck

Steel Roof
Deck

framing

Framing: Wiring Posts, Corner Posts, Top and Bottom Channels

connecting hardware

Connecting
Hardware

pre-hung steel door

Pre-Hung Steel Door
With or Without Window

wiring posts

Wiring Posts: OmniFlex Steel (Champagne, Gray, White)

non-progressive system

Non-Progressive System

galvanized floor track

Galvanized
Floor Track

vinyl interior and exterior

Vinyl-Base Interior and Exterior

  Product Specifications
Width (Feet) 16' 4-1/2" Door Style Swing
Depth (Feet) 12' 4-1/2" Frame Construction Painted Steel
Height (Feet) 8' or 9' Light Fixtures 2 (based on 4-wall building configuration)
Color / Finish Champagne, Gray, White Outlets 6 (based on 4-wall building configuration)
Approval / Regulations Fire & Sound Panel: R-11, STC-31 (Class A per ASTM-E84) Limited Warranty 1 Year
Assembly Unassembled Type 4-Wall, 3-Wall or 2-Wall
Clearance Height Interior 7'6" with 8' panels
8'6" with 9' panels
Wall Construction Fire and sound (F&S) panels with 1/2" vinyl gypsum on polystyrene core
Door Size 3' x 7' Wall Thickness (Inches) 3"

options for quick ship units

Options for Quick-Ship Units

quick ship doors

Doors

Steel Door Assembly

  • 3070 - 20 Gauge Steel Door (Flush)
  • 6070 - 20 Gauge Steel Double Door (Flush)

Glass and Threshold

  • 1/4” Clear Tempered Safety Glass

Threshold

  • 3” Aluminum Threshold
quick ship door hardware

Door Hardware

Hardware

  • Lever Lockset (standard duty)
  • 16” x 12” Door Louver
  • Door Closer
  • Kickplates
quick ship window assemblies

Window Assemblies

Fixed Window

  • 4’ or 2’ nominal width x 3’ nominal height glazed with 1/4 clear tempered safety glass

Sliding Window

  • 3’ x 3’ nominal dimensions, installed in wall panel glazed with 1/8” clear
    tempered safety glass
quick ship roofs

Roof and Ceiling Systems

Acoustical Ceiling

  • 2’ x 4’ x 5/8” mineral fiberboard with white steel grid system

Ceiling Insulation

  • 6” Fiberglass (R-19) (144 SF per roll)

Up to 12’ Length Roof Deck

  • 16’ or 20’ long dust cover support beam
  • 12’ Dust cover support angle (must be
    used along all existing walls)
quick ship climate control

Climate Control

HVAC Units

  • 11,600 btu cool/11,300 btu heat (230V)

Air Conditioning Units

  • 7,900 btu (115V)

Baseboard Heaters

  • 1,500 watt - 120V

Framed Cutouts

  • Installed or material only (size not to
    exceed 12 l.f.)
quick ship electrical components

Electrical Components

Light Fixture

  • 2’ x 4’ fluorescent (4-bulb) fixture, T8 ballast (bulbs not included)

Outlet or Switch

  • Outlet without Wiring (15V) OR switch without wiring (15V)

Circuit Breaker Boxes

  • 4-Space, 6-Space, or 10-Space

Exhaust Fan

  • 270 cfm ceiling mounted exhaust fan with fan, duct kit, & switch (louver in
    door recommended for max air flow)

modular electric packages

Modular Electric Packages

Modular Wiring

For even greater convenience, offices can be outfitted with a pre-engineered modular wiring system.

  • This system significantly reduces time and costs associated with new in-plant office installations by providing all the necessary electrical hardware in a convenient and pre-engineered “snap together” wiring system.
