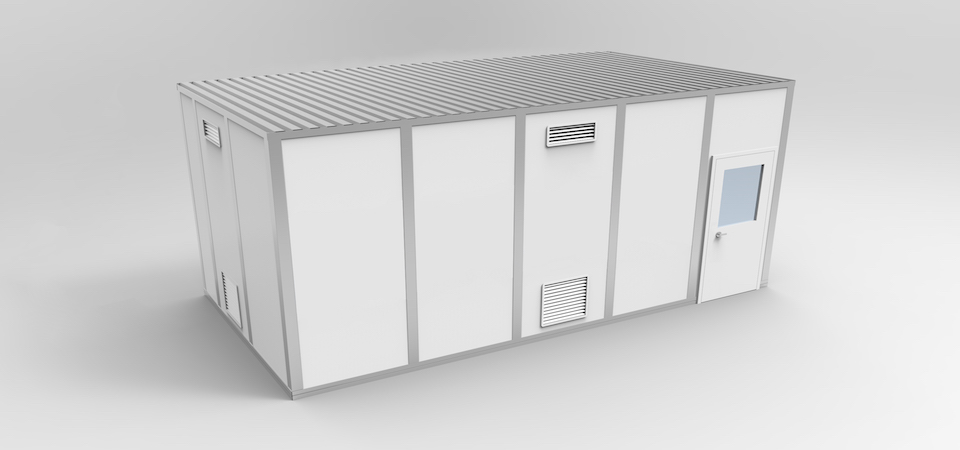

10’ x 20’ x 10’ Modular ISO Cleanroom

PortaFab's standard hardwall cleanrooms are the ideal solution where stand-alone cleanroom units are needed.

This 20' wide by 10' deep cleanroom measures 10' tall and is designed to comply with ISO cleanroom classifications. This cleanroom utilizes a single pass design with fan filter units housed in a 2-foot tall plenum and air grills mounted into the wall panels.

It also features a load-bearing roof, modular wiring, and steel surface finish.


How cleanrooms control particle size, how big is a particle, PortaFab Cleanroom

Standard Features

Cleanroom Frames

Frame

Studs are 6063-T5 aluminum extrusions with 201R1 anodized clear finish.

  • Wiring studs shall permit wiring access on one side
  • Available in white
Cleanroom Wall Panels

Wall Panels

Building offers 3” thick wall panels.

  • 24 GA sheet steel painted with a polyester-backed enamel on each side
  • Sheet steel is laminated to ½" gypsum with a 1-15/16" polystyrene core

Wall panels vary by end-application and ISO room classification. Contact us for your specific requirements.

Cleanroom Roof

Roof

The corrugated steel roof is designed for a maintenance load of 25 PSF.

Cleanroom Ceiling

Ceiling

Class A noncombustible acoustical ceiling.

  • 1-1/2" gasketed grid
  • Vinyl-faced ceiling tiles
Cleanroom Door

Door

(1) 36" wide x 84" tall x 1-3/4” thick seamless 18 gauge steel door which includes:

  • Steel frame with a ¼” thick tempered glass window
  • ADA approved lever style lockset
  • Mortised hinges
  • Door sweep and door closer
  • Available in white
Cleanroom Light Fixture

Light Fixtures

(3) 2' x 4' recessed fluorescent cleanroom light fixture (gasketed) with acrylic lens cover.

  • Fixtures require 48” long T8 bulbs (not included)
Cleanroom Fan Filter Units

Fan Filter Units

2' x 4' 115 volt motorized fan filter units (number of units vary by room classification) with HEPA/ULPA filters with standard or room-side-replaceable filters.

Cleanroom Electrical

Electrical

Plug and play modular wiring system

  • Handy boxes
  • Wall switch and (6) 110 volt duplex outlets (optional colors available)
  • Circuit breaker panel (with breakers)

Electrical service to the panel and wiring of the breakers is not included
