Standard "Quick Ship" Modular Offices

Standard "Quick-Ship" Modular Offices

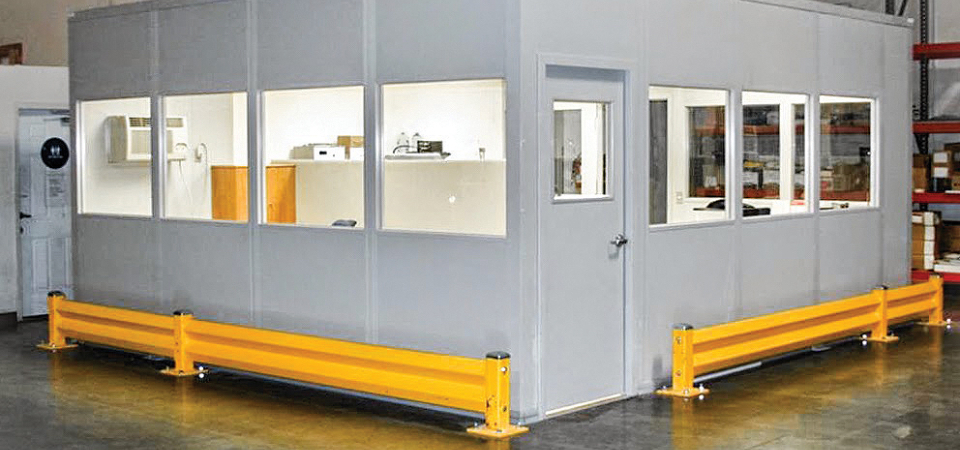

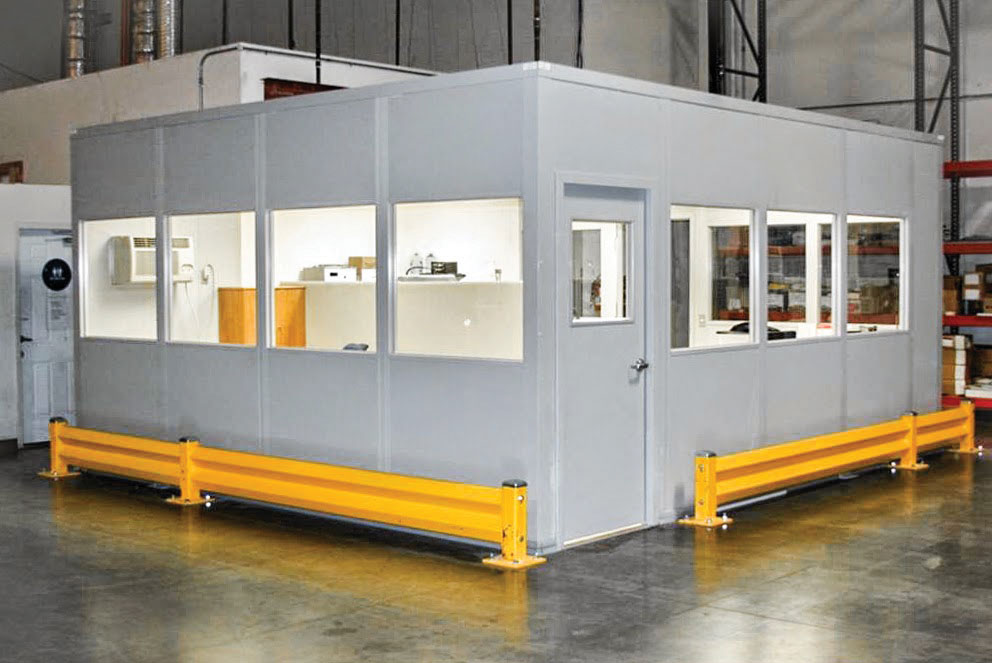

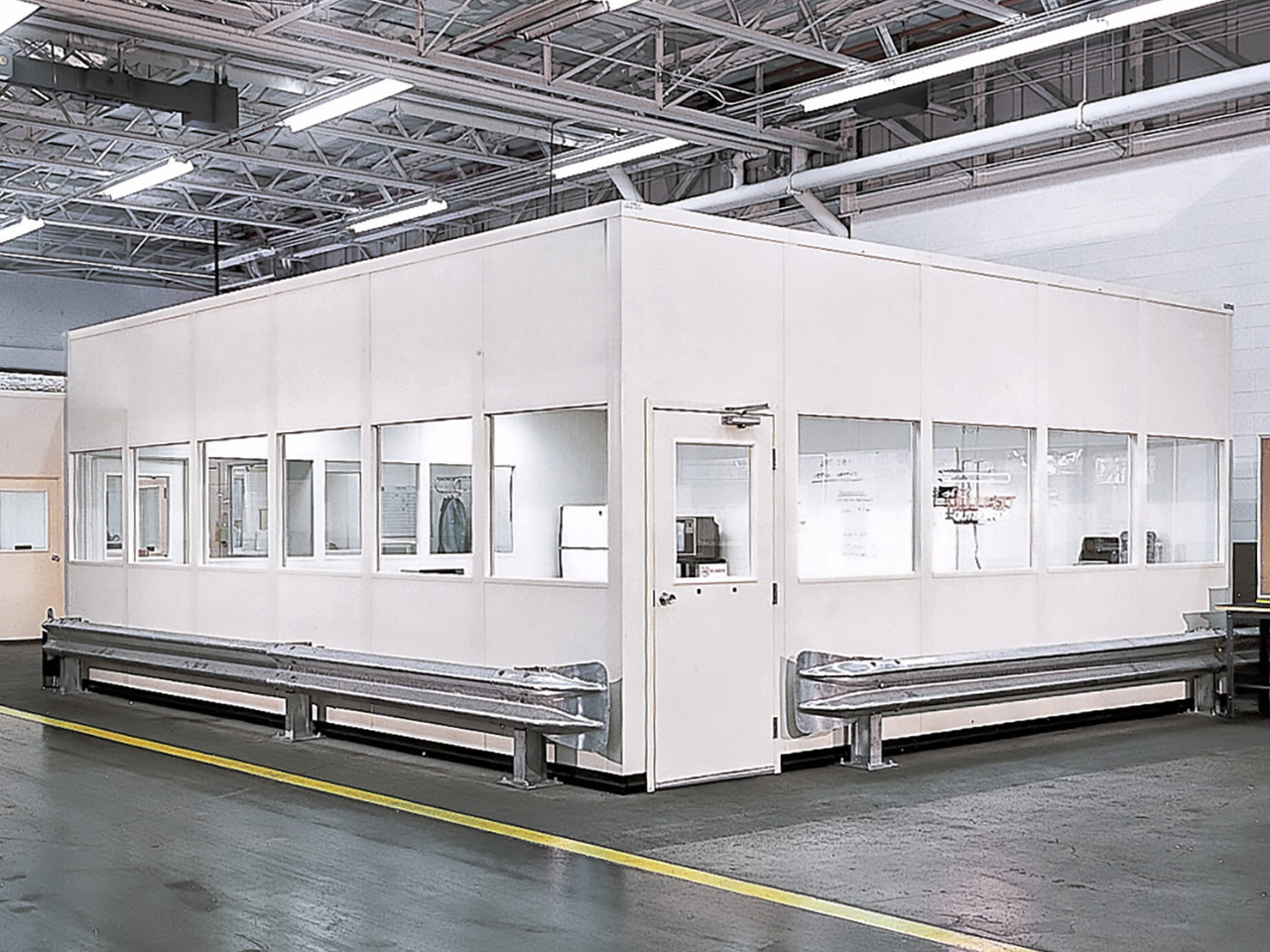

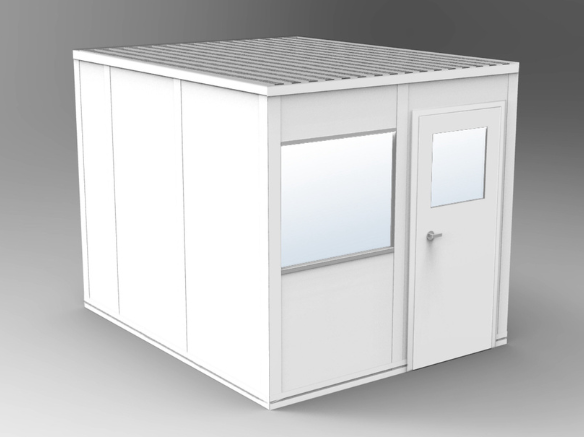

16' x 16' "Quick-Ship" Modular Building

Our integrated modular systems design and interchangeability of parts enables us to ship standard offices within 5 days.

"Quick-Ship" units come as two, three, or four wall buildings created from your selection of either the OmniFlex Plus steel or Series 300 aluminum stud framing systems. All systems include galvanized floor track, vinyl base on interior and exterior, painted top cap, wiring posts and 3" thick wall panels.

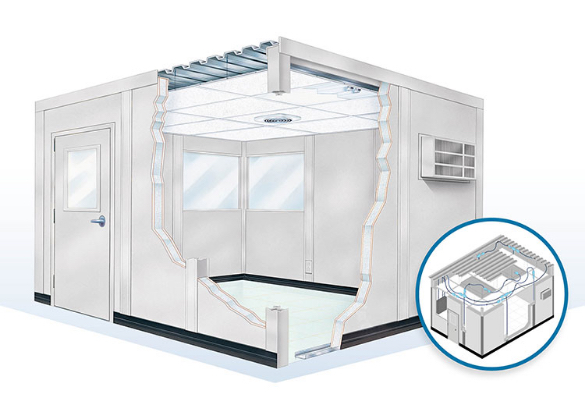

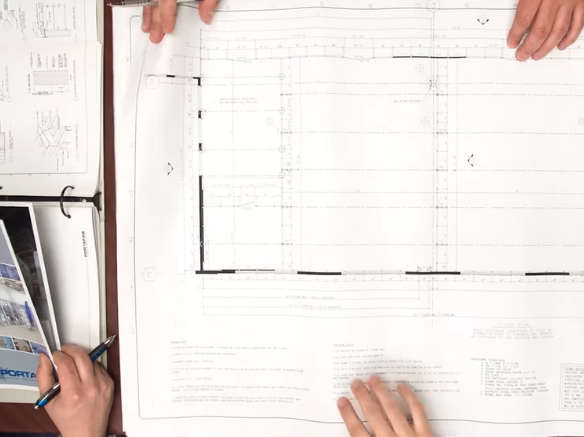

The components of a typical "Quick-Ship" prefabricated office and information on how to design one are available in Specifying Instructions.



Standard "Quick-Ship" Building Sizes:

8x8 standard quick ship building

8x8

10x10 standard quick ship building

10x10

12x12 standard quick ship building

12x12

16x16 standard quick ship modular building

16x16

20x20 standard quick ship modular building

20x20

8x10 standard quick ship modular building

8x10

10x12 standard quick ship modular building

10x12

12x16 standard quick ship modular building

12x16

16x20 standard quick ship modular building

16x20

20x24 standard quick ship modular building

20x24

8x12 standard quick ship modular building

8x12

10x16 standard quick ship modular building

10x16

12x20 standard quick ship modular building

12x20

16x24 standard quick ship modular building

16x24

20x28 standard quick ship modular building

20x28

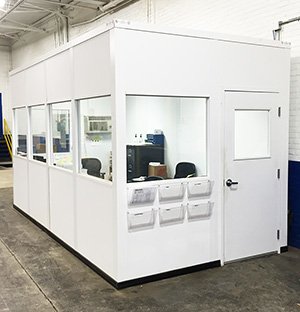

8x16 standard quick ship modular building

8x16

10x20 standard quick ship modular building

10x20

12x24 standard quick ship modular building

12x24

16x28 standard quick ship modular building

16x28

20x32 standard quick ship modular building

20x32

8x20 standard quick ship modular building

8x20

10x24 standard quick ship modular building

10x24

12x28 standard quick ship modular building

12x28

16x32 standard quick ship modular building

16x32

20x36 standard quick ship modular building

20x36

8x24 standard quick ship modular building

8x24

10x28 standard quick ship modular building

10x28

12x32 standard quick ship modular building

12x32

16x40 standard quick ship modular building

16x40

20x40 standard quick ship modular building

20x40



5 Day "Quick-Ship" Program

PortaFab provides five day shipments for orders less than $12,000 and less than 20' in width for Series 300 and OmniFlex 300 product lines.

The color will be champagne, gray or white on both sides, in wall heights of 8' or 9'. Standard thermal panels consist of 1/4" vinyl hardboard on polystyrene core or fire and sound (F&S) panels with 1/2" vinyl gypsum on polystyrene core. Please refer to the accessories below for a listing of which items are available under this program.

The following will help you determine what orders will qualify under this program:

Qualifying Options

 Non-Qualifying Options

 checkmark8' or 9' wall height Special cut height
 checkmarkChampagne, gray or white finish both sides Any other color
 checkmarkThermal panels consisting of 1/4" vinyl hardboard on polystyrene core or fire and sound (F&S) panels with 1/2" vinyl gypsum on polystyrene core Other panel constructions
 checkmark3070 & 6070 doors with or without glass Other door sizes
 checkmark1/4" clear tempered glass, 4' x 3' or 2' x 3' fixed windows Other glass options
 checkmarkFramed A/C cutouts Large cutouts and openings
 checkmarkDust cover support beam Load-bearing roofs
 checkmarkOrders less than $12,000 net Orders over $12,000 net
 checkmarkBuildings 20' wide or less Buildings wider than 20'
 checkmarkAny accessories noted below Special items not in stock



Options for "Quick-Ship" Units

Doors and Hardware
Steel Door Assembly
  • 3070 - 20 Gauge Steel Door Assembly - Flush
  • 6070 - 20 Gauge Steel Double Door Assembly - Flush
Glass
  • 1/4" Clear Tempered Safety Glass
Threshold
  • Aluminum Threshold - 3"
Locksets
  • Lever Lockset (standard duty)
Door Louver
  • Door Louver - 16" x 12"
Msc Hardware
  • Door Closer
  • Kickplates



Window Assemblies
Fixed Window
  • 4' or 2' nominal width x 3' nominal height glazed with 1/4 clear tempered safety glass.
Sliding Window
  • 3' x 3' nominal dimensions, installed in wall panel glazed with 1/8" clear tempered safety glass.



Roof and Ceiling Systems
Acoustical Ceiling
  • 2' x 4' x 5/8" mineral fiberboard with white steel grid system
Ceiling Insulation
  • 6" Fiberglass (R-19) (144 SF per roll)
Roof Deck
  • Up to 12' length
  • 16' long dust cover support beam
  • 20' long dust cover support beam
  • Dust cover support angle - 12' (must be used along all existing building walls)

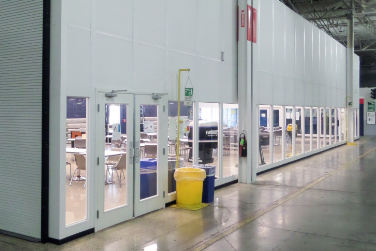

Climate Control
HVAC Units
  • 11,600 btu cool/11,300 btu heat (230V)
Air Conditioning Units
  • 7,900 btu (115V)
Baseboard Heaters
  • 1,500 watt - 120V
Framed Cutouts
  • Installed or material only (size not to exceed 12 l.f.)

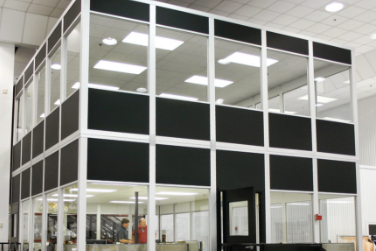

Electrical Components
Light Fixture
  • 2' x 4' flourescent (4-bulb) fixture, T8 ballast (bulbs not included)
Outlet or Switch
  • Outlet without Wiring (15V)
  • Switch without wiring (15V)
Circuit Breaker Boxes
  • 4-Space
  • 6-Space
  • 10-Space
Exhaust Fan
  • 270 cfm ceiling mounted exhaust fan - Includes fan, duct kit, and switch (louver in door is recommended for maximum air flow)

Learn more about our Modular Wiring Package.

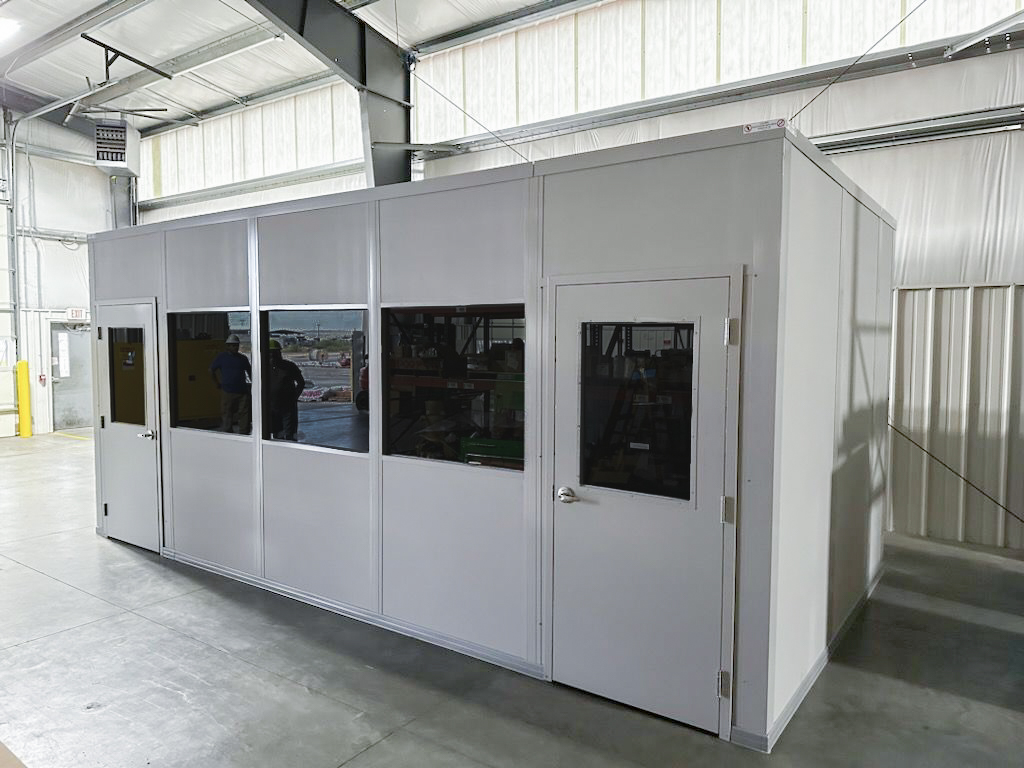

Custom Buildings Available

Visit our Applications page for options beyond our standard line of quick ship modular buildings.
