Shelter Specifications

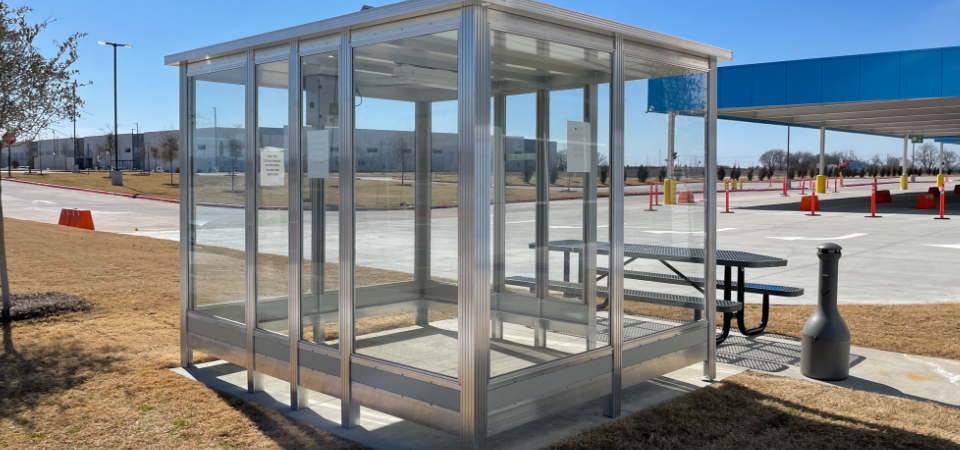

shelter specificationsPortaFab Shelters feature a rugged, all-weather construction.

  • Structure: Mill finished, extruded aluminum 6063-T5 alloy channels and posts.

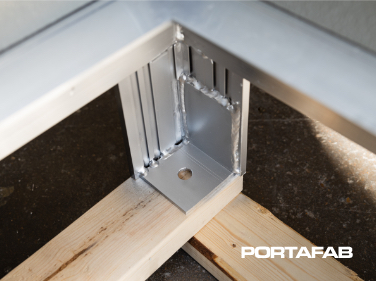

  • Welding: All structural components are certified welded at all intersections to create a unitize framework with no rivets, bolts, or fasteners.

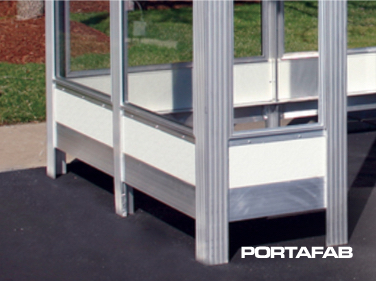

  • Wall Panels: Durable and weather resistant ½" Medex™ laminated with gray fiberglass reinforced plastic on both sides.

  • Ceiling: 5/8" white vinyl-faced board with interior clear height of 89".

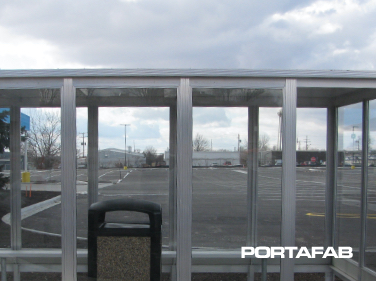

  • Roof: Units ship with a standard three-inch overhang on the exterior roof.

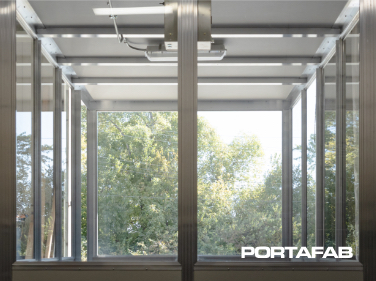

  • Windows: Anodized aluminum window frames with heavy-duty weather-stripped windows made from 1/4" thick clear tempered safety glass. Tinted, polycarbonate, and acrylic windows are also available.

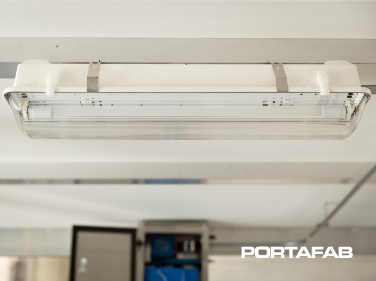

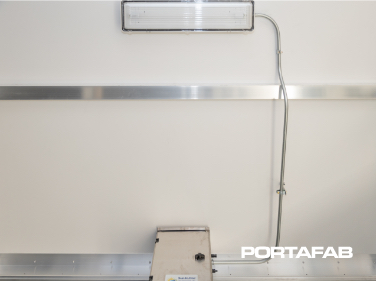

  • Electrical: When applicable, all conduit and wiring is surface mounted and installed along with a 100 amp circuit breaker box to power lighting, climate control, and ventilation systems.

  • Options: Shelters can include benches, lights, ash tray/urns, exhaust fans, and ceiling mounted radiant heaters.



Specifications for Smoking Shelters
Shelter Size Model Number Specifications

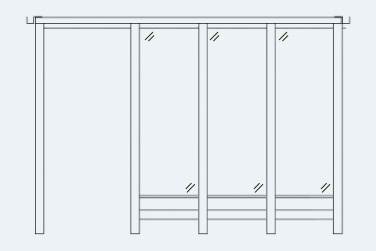

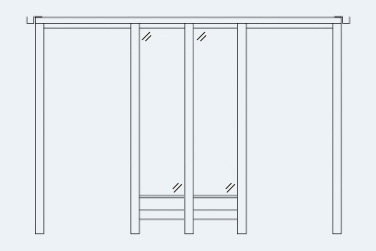

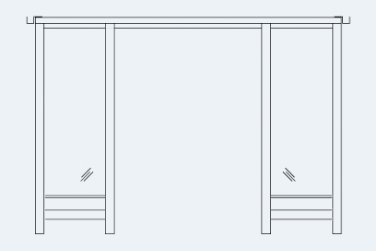

6 x 6 66 AutoCAD .dwg    Acrobat .pdf
6 x 8 68 AutoCAD .dwg    Acrobat .pdf
6 x 10 610 AutoCAD .dwg    Acrobat .pdf
6 x 12 612 AutoCAD .dwg    Acrobat .pdf
8 x 8 88 AutoCAD .dwg    Acrobat .pdf
8 x 10 810 AutoCAD .dwg    Acrobat .pdf
8 x 12 812 AutoCAD .dwg    Acrobat .pdf
8 x 16 816 AutoCAD .dwg    Acrobat .pdf
8 x 20 820 AutoCAD .dwg    Acrobat .pdf
