Modular Wall Panels

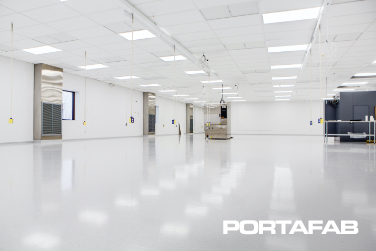

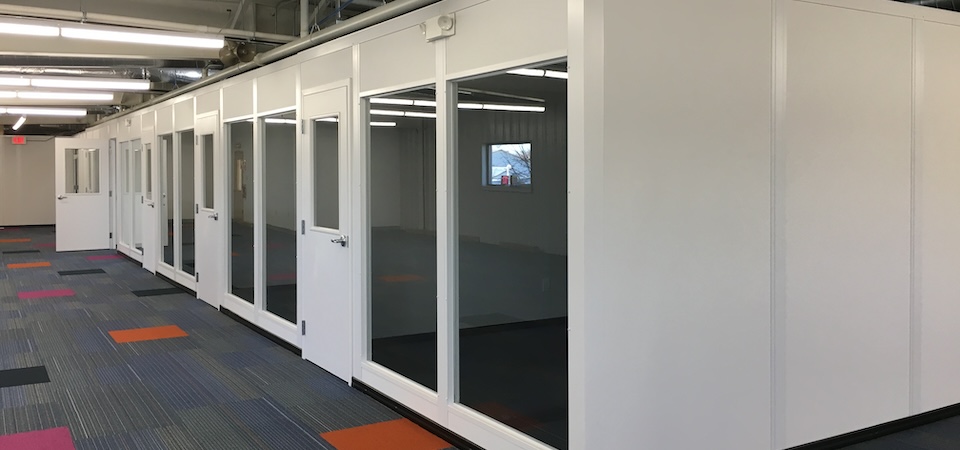

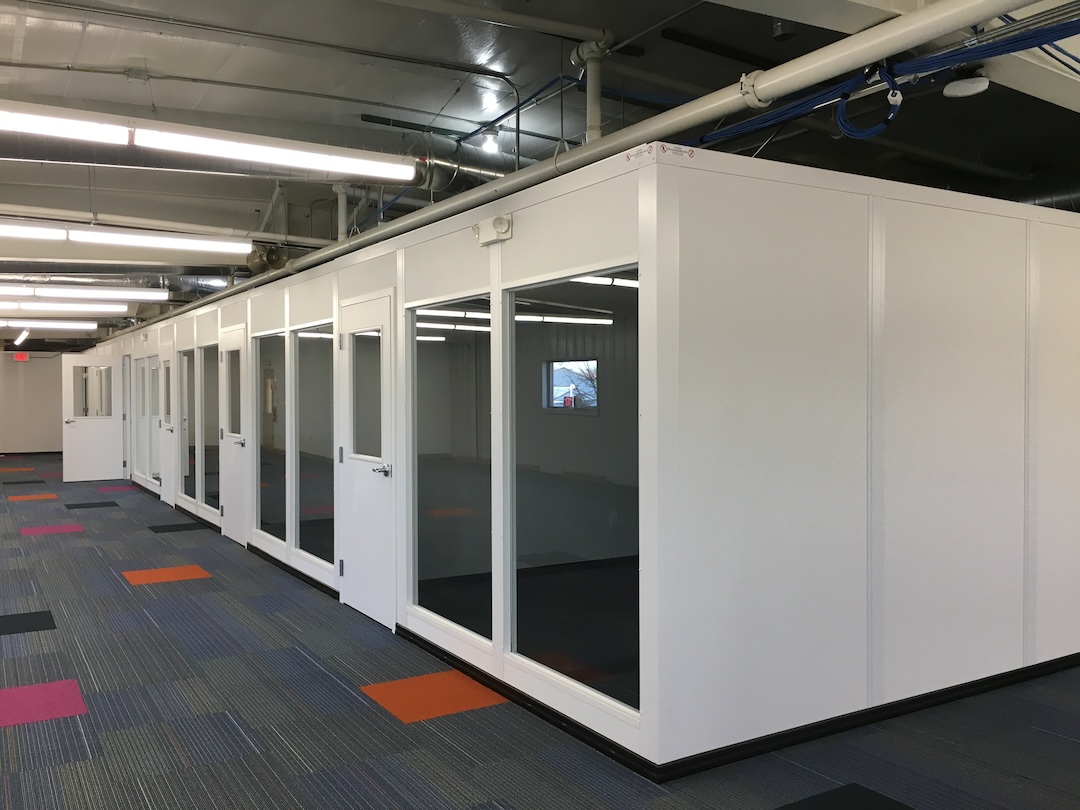

Regardless of the application, PortaFab either has or can custom build modular wall panels to meet all of your requirements. From simple office partitions to sophisticated clean room walls, we have the experience to design the perfect modular wall system for your application.

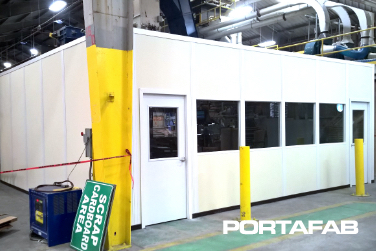

Fire and Sound

Our most popular panels provide great sound reduction and excellent thermal properties. They are non-combustible and meet most of today's building codes.

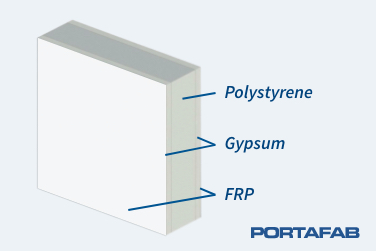

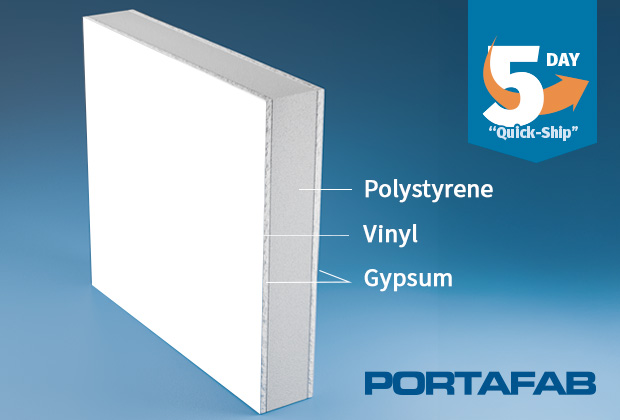

Standard Fire & Sound

These value-oriented panels feature a vinyl gypsum exterior mounted on a polystyrene core.

Panel Thickness 2" 3" 4 5/8"
STC 32 31 31
R-Value 3 11 16
   fire and sound modular wall panels

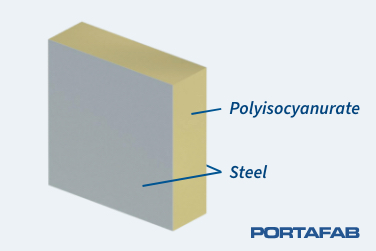

Steel Panels

These durable wall panels are ideal for areas exposed to a great deal of foot traffic and material handling equipment.

Panel Thickness 2" 3" 4 5/8"
STC 32 31 31
R-Value 3 11 16
   steel modular wall panels
Panel Thickness 2" 3" 4 5/8"
STC 32 31 31
R-Value 3 11 16
   plated steel modular wall panels

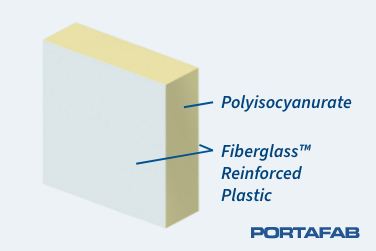

Fiberglass Reinforced Plastic (FRP) Panels

Ideal for laboratories, break rooms, bathrooms and any other area that will be exposed to moisture or harsh cleaning agents.

Panel Thickness 2" 3" 4 5/8"
STC 24 20 20
R-Value 7 13 20
   FRP modular wall panels

Standard Wall Panels

Typically chosen for their low cost, standard hardboard panels provide excellent thermal insulation and can be made with a wide variety of surface finishes.



Hardboard

This low cost wall utilizes a solid wood sheet instead of gypsum.

Panel Thickness 2" 3" 4 5/8"
STC 24 20 20
R-Value 7 13 20
   hardboard modular wall panels

Steel

This extremely lightweight panel eases assembly especially in applications requiring extra tall walls.

Panel Thickness 2" 3" 4 5/8"
STC 25 25 25
R-Value 7 13 20



   steel modular wall panels

SteelSpan

SteelSpan commercial and industrial panels serve as walls, ceilings and roofs for commercial and industrial buildings, in new and retrofit construction. SteelSpan insulated metal panels can be easily adapted to pre-engineered metal building designs for almost any end-use as walls and roofs, saving material and labor costs.

Panel Thickness 3" 4" 5" 6"
STC 24 24 24 24
R-Value 22 29 36 43



   steelspan modular wall panels

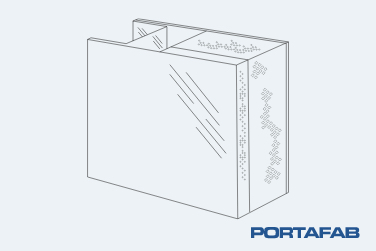

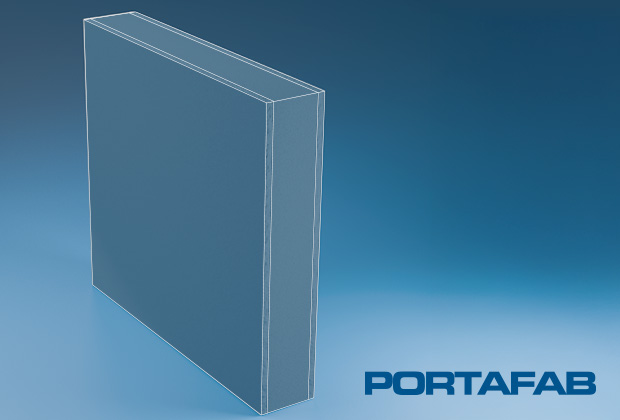

Specialty Wall Panels

Alternate surfaces and cores are available to meet the requirements of any application. Surfaces offered include melamine, vinyl, painted steel, stainless steel, high-pressure laminates, and porcelainized steel. Panel cores are available in expanded polystyrene, paper honeycomb, aluminum honeycomb, gypsum, isocyanurate and mineral wool.

Panel Thickness 3" 4 5/8"
STC 20 20
R-Value 1 1



   custom modular wall panels

Polyisocyanurate

Totally non-combustible wall panel with excellent thermal insulation.

Panel Thickness 2" 3" 4 5/8"
STC 24 20 20
R-Value 10 18 27
   thermal modular wall panels

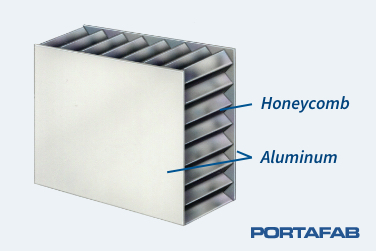

Aluminum Honeycomb Panels

When applications require a lightweight, high strength composite panel, aluminum honeycomb panels are often the best solution. These panels are non-combustible and have high resistance to moisture, corrosion, and fungi.

Panel Thickness 2" 3" 4 5/8"
STC 20 20 20
R-Value 3 3 3



   aluminum honeycomb panels
