CleanLine Modular Cleanroom Systems

The CleanLine System represents our all-purpose solution for creating a wide variety of cleanrooms and environmental enclosures. It is designed for applications from ISO 4 to ISO 8 cleanroom environments, but it is cost effective enough to use for simpler applications involving basic process segmentation or control over air quality, temperature, or humidity.

Cleanroom Walls and Panels

The post and panel system includes three distinct sizes that can be used in combination with each other to create functional environments with a consistent appearance. Each wall system is designed to meet all the requirements of a new or existing cleanroom project while providing an effective alternative to conventional construction.

The extruded aluminum components and ultra smooth panel surfaces are ideal for achieving maximum cleanliness in a controlled environment. With all the options available, PortaFab can tailor a cleanroom to fit your environmental control and plant configuration needs faster and at a lower cost than with conventional construction.

Designed for Flexibility

CleanLine Systems can be installed as free-standing envelope structures independent of the rest of the building or as floor to ceiling systems that connect to the underside of a ceiling grid system or the deck of a building. They can also incorporate load bearing equipment platforms that provide support to essential mechanical equipment or maintenance loads.

Like all of our modular systems, the CleanLine Series provides complete flexibility with demountable walls allowing panels to be modified or removed without disturbing adjacent wall panels or the ceiling.



CleanLine Series Wall Systems

The PortaFab CleanLine Series includes three wall systems:

S3000 Wall System

cleanline s3000 cleanroom walls

The S3000 3" thick cleanroom wall system is the perfect solution when a free-standing cleanroom envelope with a plenum cap is required and the design criteria do not allow the cleanroom to tie into an existing structure where the ceiling can be supported. The systems load-bearing roof provides support of mechanical equipment.

  • 3" (76mm) wall panel system with wiring raceway
  • Load-bearing roof capabilities
  • Available in heights up to 18' tall
  • All aluminum framework

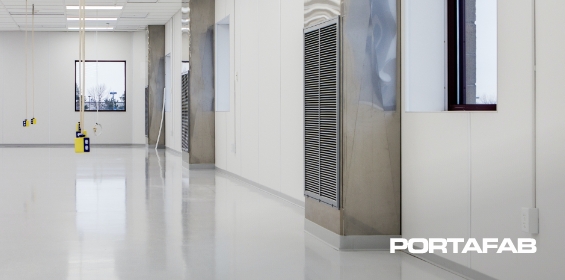

Furring Wall System

cleanline furring cleanroom Wall System

The CleanLine Furring wall offers an attractive, cost-efficient wall system for cleanroom construction over existing block or gypsum walls, studs and columns.

  • 1/2" and 1/4" panel options.
  • Panels provide flush surface on one side
  • Ideal for environments up to a sub-M1 classification
  • Quick and cost-effective method of lining a cleanroom

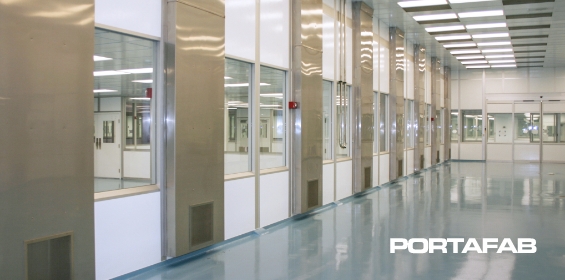

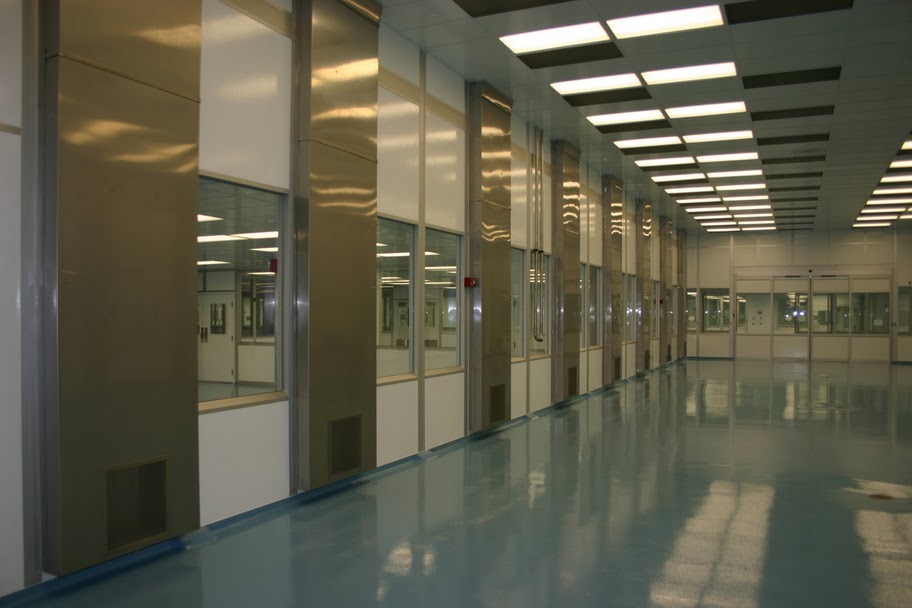

PM458 XTRA TALL Wall System

PortaMax aluminum cleanroom Wall System

The PM458 system features extra height walls that can extend to your existing ceiling or be freestanding with load-bearing decks. The simple, fast installation of the PM458 minimizes plant disruption while the variety of core materials and panel finishes allow you to meet requirements for acoustic and thermal insulation, chemical resistance, and static control.

  • 4-5/8" (117mm) wall panel system with wiring raceway
  • Load-bearing roof capabilities
  • Available in heights up to 24' tall



Locally-sourced installation due to our extensive dealer network.
