10' x 10' Standard "Quick Ship" Modular Building

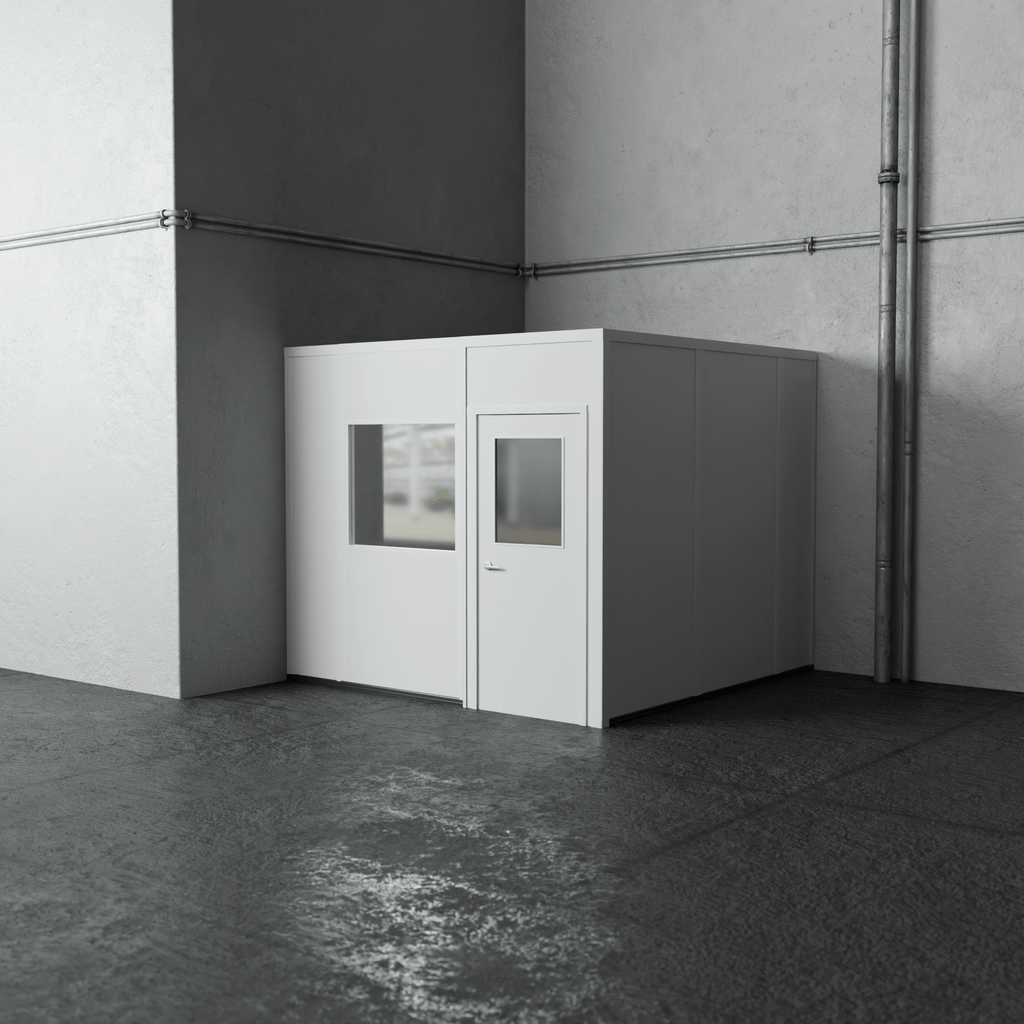

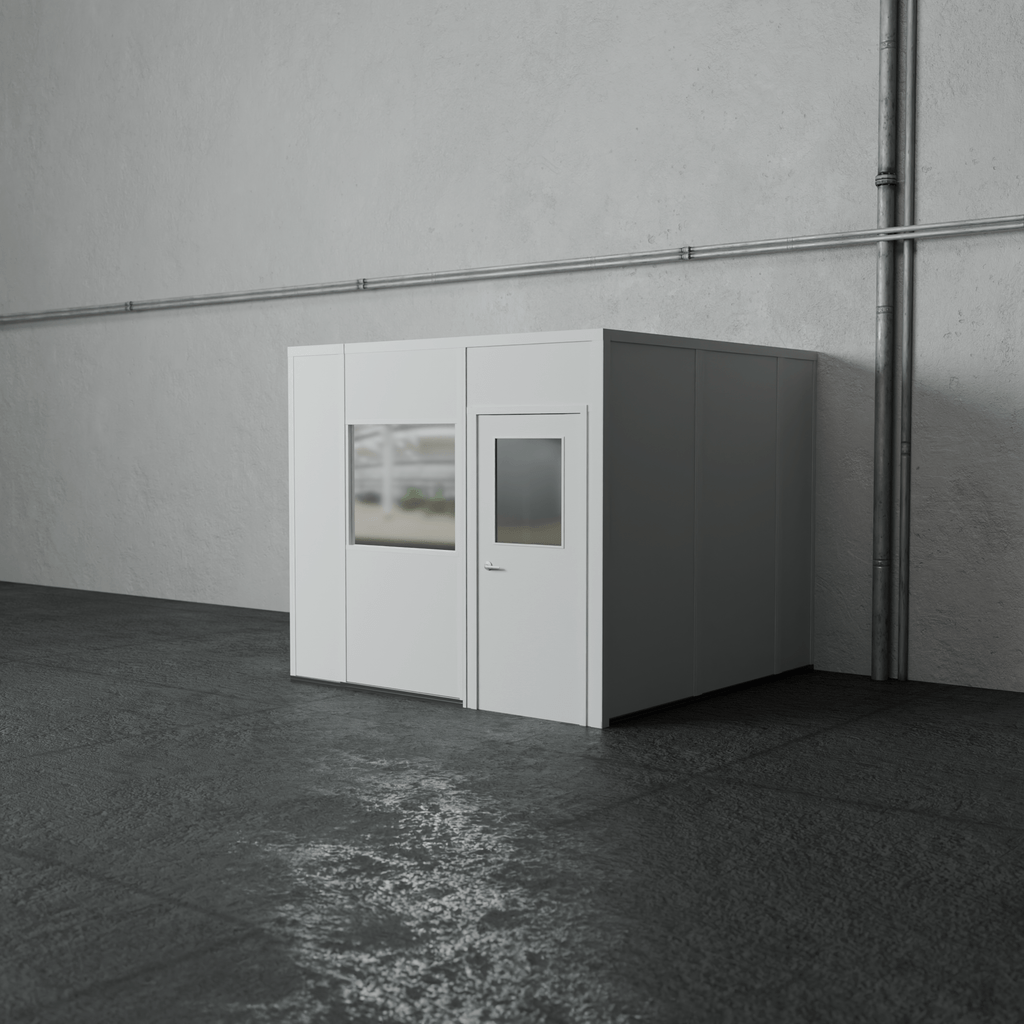

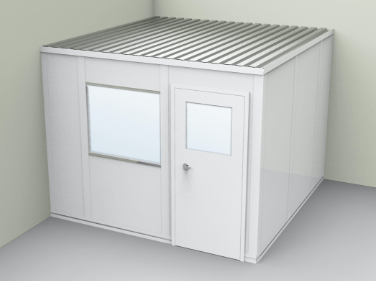

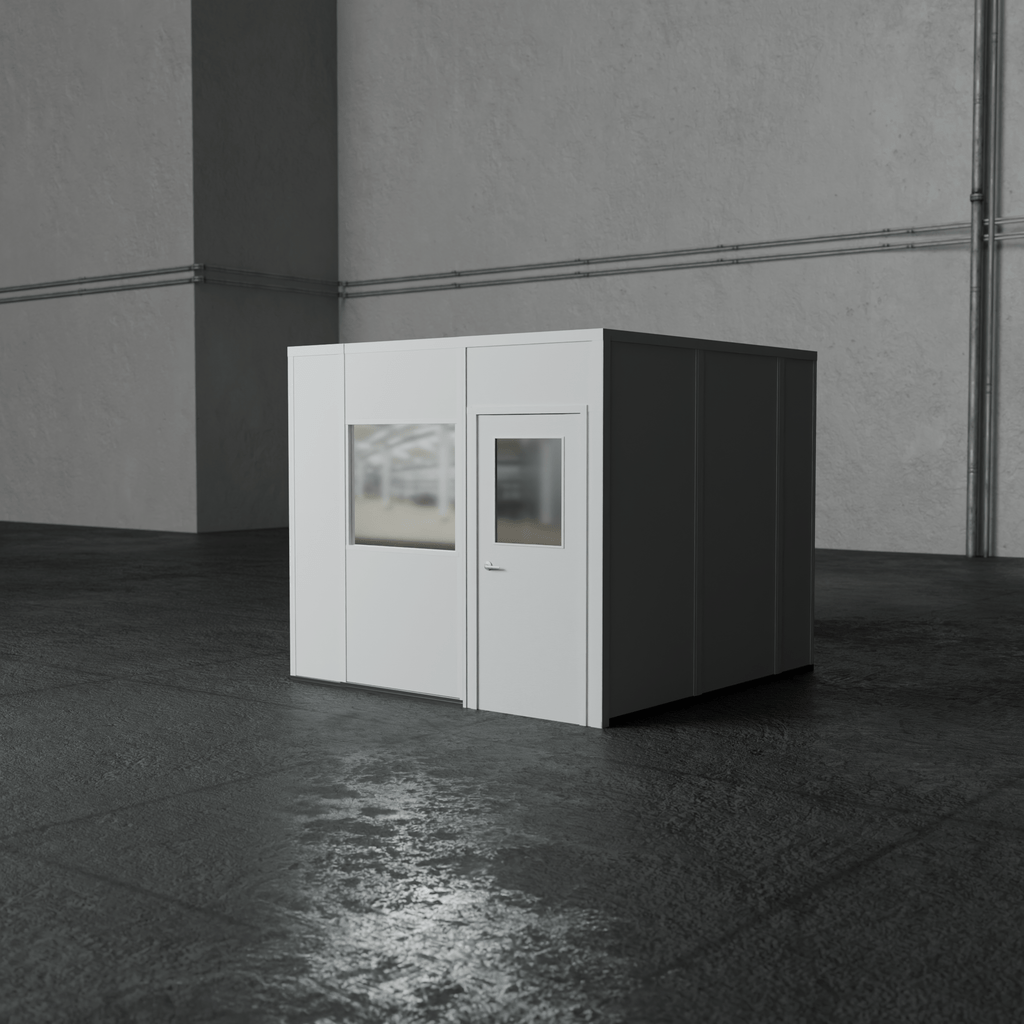

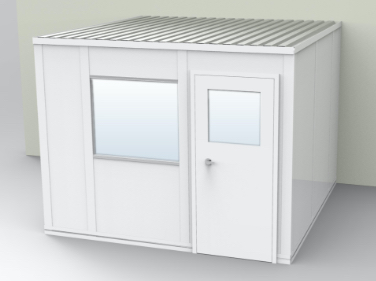

Save costs, labor, and materials with modular construction. PortaFab's "Quick-Ship" modular units come as two, three, or four wall buildings created from your selection of either the OmniFlex steel or Series 300 aluminum stud framing systems.
Our complete prefab kits include everything needed for a basic modular inplant office. All models include the following:
- Interchangeable wall panels (Thermal or Fire & Sound panels)
- Acoustical drop ceiling
- Steel roof deck
- Framing: Wiring posts, corner posts, top and bottom channels
- Connecting hardware
- Pre-hung steel door with or without window
10' x 10' "Quick-Ship" Building Specifications
|Width (Feet)||10' 4 1/2"|
|Depth (Feet)||10' 4 1/2"|
|Height (Feet)||8' or 9'|
|Color / Finish||Champagne, Grey, White|
|Approval / Regulations||Thermal Panel: R-13, STC-24
Fire & Sound Panel: R-11, STC-31 (Class A per ASTM-E84)
|Clearance Height Interior||7' 6"|
|Door Size||3' x 7'|
|Frame Construction||Painted Steel|
|Light Fixtures||2 (based on 4-wall building configuration)|
|Outlets||4 (based on 4-wall building configuration)|
|Limited Warranty||1 Year|
|Type||4-Wall, 3-Wall or 2-Wall|
|Wall Construction||Standard thermal panels consist of 1/4" vinyl hardboard on polystyrene core or fire and sound (F&S) panels with 1/2" vinyl gypsum on polystyrene core|
|Wall Thickness (Inches)||3|
- Wiring Posts - OmniFlex steel (in champagne, grey, or white).
- Non-progressive system.
- Galvanized floor track.
- Vinyl-base interior and exterior.
Review the steps for purchasing a modular building to learn more about how to choose the prefabricated building that is right for your business.
Options for "Quick-Ship" Units
|Doors and Hardware|
|Steel Door Assembly||
|Roof and Ceiling Systems|
|Air Conditioning Units||
|Outlet or Switch||
|Circuit Breaker Boxes||
Modular Electric Packages
For even greater convenience, offices can be outfitted with a pre-engineered modular wiring system. This system significantly reduces time and costs associated with new in-plant office installations by providing all the necessary electrical hardware in a convenient and pre-engineered “snap together” wiring system. Learn more about our Modular Wiring Package.
