Modular Office Anatomy



Inplant modular office

1. Doors6. Acoustical Lay-in Ceiling11. Steel Floor Track
Standard units are available with either 3070 - 20 gauge steel doors or 6070 double door assemblies. The drawing shows a 3070 with optional glazing (1/4" clear tempered safety glass). Standard options include door closers, aluminum thresholds, locksets, louvers, and kickplates.Prepainted metal grid with lay-in acoustical ceiling tiles made from noncombustible white fissured mineral board.Sturdy steel channels hold wall panels securely in place and are included with every modular office.
2. Cornice Mold7. Exhaust Fan12. Corner Posts
Sturdy anodized aluminum construction, either anodized or painted, provides handsome finished appearance.Powerful exhaust fans can be included with any office.Part of the framing system and included with every office.
3. Fixed Windows8. Climate Control Unit13. Duplex Receptacle
Standard windows are either 4' or 2' in width and 3' tall with 1/4" clear tempered safety glass. Sliding windows and other sizes are also available.Standard units can be ordered with walls prepped with a factory installed cutout for mounted HVAC or AC units (also available).

Receptacles can be mounted in any wiring stud and are part of the standard electrical package that includes:

  • Duplex outlets
  • Wall switch
  • Circuit breaker box
  • Handy boxes and conduit
4. Corrugated Steel Dust Cover9. Fire & Sound Panels14. Wiring Studs

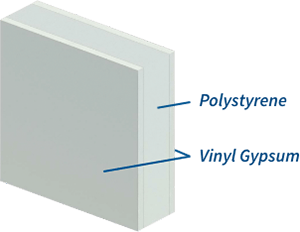

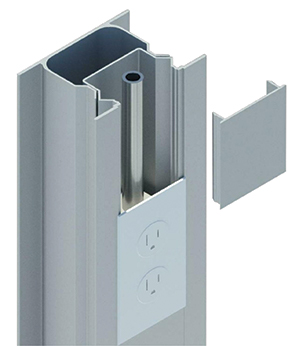

22 gauge ribbed steel decking painted and cut to length is standard for all units.Standard Fire & Sound panels are 3" thick and feature an insulating polystyrene core with a 1/2" thick vinyl gypsum surface bonded to each side. Available in gray, champagne, or white.Part of all framing systems, studs permit the installation of electrical service vertically and accept standard electrical boxes. Complete modular wiring systems are also available.
5. 2' x 4' Light Fixture10. Standard Thermal Panels15. Brown Vinyl Base
4-lamp light fixture with acrylic lens. (Bulbs not included.)Standard wall panels are 3" thick and feature 1/8" thick vinyl hardboard bonded to an insulating polystyrene core. Available in gray, champagne, or white.Screw-on type base is easily removable with no exposed screws or fasteners. Included with all modular offices.
