Routing Trimless End Panels

Trimless end panels can be formed by routing the perimeter as shown in Figure 3-6. Routing must remove all of the core and adhesive and cut into the aluminum face. The face cantilever can be bent using a manual press brake. The use of a die will prevent crushing the honeycomb core.

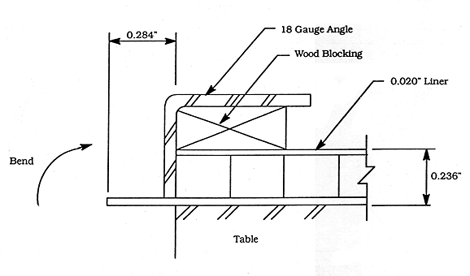

     Figure 3-6: Panel With Trimless End Condition
