Routing Corner Cut-Outs & Details

Corner cutouts are required when the Formacore panel edge bends or returns are used around perimeter of panels. Cutouts as shown in Figures 3-7 and 3-9 are made using a saber or reciprocating saw with carbide-tipped blade.

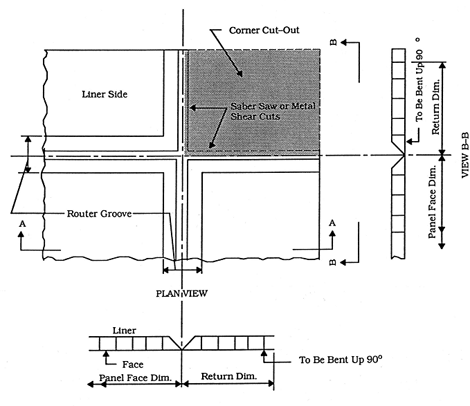

     Figure 3-7: Routing Pattern At Corners Corner Cutout “A”
     Refer to Figure 3-8 for completed Corner Detail

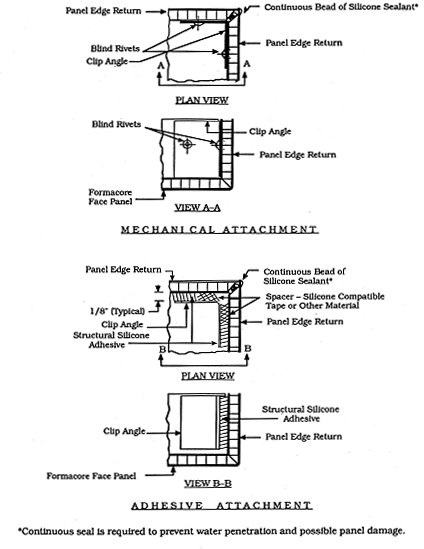

     Figure 3-8: completed Corner Details
     Typical Corner Type “A” Assembly Details

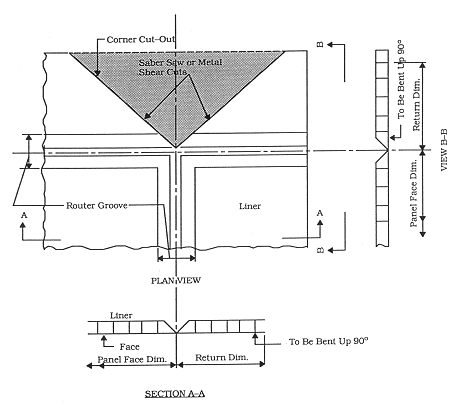

     Figure 3-9: Alternate Routing Pattern At Corners Corner Cutout “B”
     Refer to Figure 3-10 for Completed Corner Detail

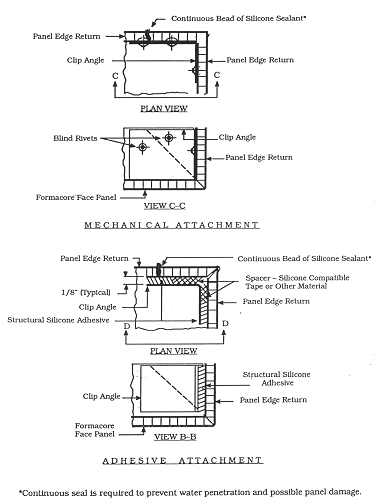

     Figure 3-10: Completed Corner Details
     Typical Corner Type “B”
