Routing – Preferred Method for Angular Bends

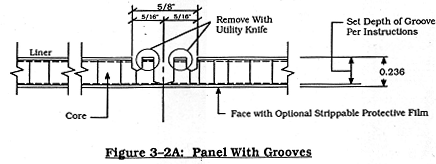

Successful angular bends require a continuous groove cut through the liner and core. Refer to Figure 3-2A. The preferred method for making this groove is to make three saw kerfs as follows.

Use a circular saw with a special carbide tipped blade to make the first cut with the blade set to the depth required to score a “V” groove on the inner side of the fascia to a depth of .015”± .005”.* This scoring:

• Serves to minimize cracking of the fascia coating when the panel is bent and
• Is beneficial in forming a clean, crisp line in the finished product.

Adjust the depth of cut on the saw and make the second and third cut as shown in Figure 3-2A.

Use a utility knife to cut away the remaining material to form a 5/8” wide groove.
